RIEGLER Male elbow, M16x1.5o., Pipe exterior Ø10, galvanised steel
Typennummer: WEVM1610SST
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Elbow screw-in fitting M16x1 made of galvanized steel (DIN 2353) - type WEVM1610SST
The RIEGLER elbow screw-in fitting M16x1.5a., pipe A-Ø10, galvanized steel creates a permanent, metal-tight pipe connection based on the proven cutting ring principle. The housing is made of galvanized steel (DIN 2353). Connection thread M16x1.5 keg. - Suitable for common industry standards. Permanently tight - even with vibration and temperature fluctuations.
Field of application
Typical areas of application: Compressed air distribution, hydraulics and process technology.

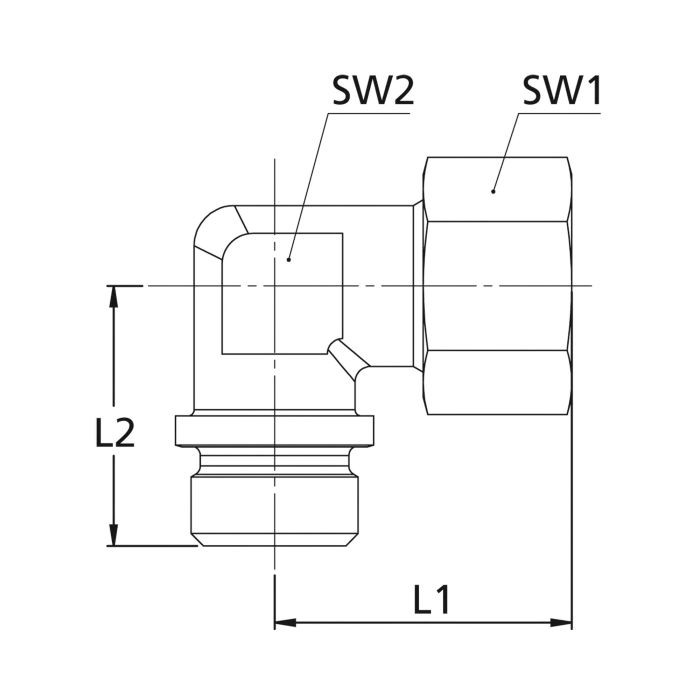

| Material | Galvanized steel (DIN 2353) |
| Thread | M16x1.5 keg. |
| SW 1 | 22 mm |
| SW 2 | 17 mm |
| Tube outer Ø | 10 mm |
| PN | 630 bar |
| L1 | 34 mm |
| L2 | 28 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[159200] RIEGLER Male elbow, M12x1.5o., Pipe exterior Ø6, galvanised steel](/web/image/product.template/215031/image_128/%5B159200%5D%20RIEGLER%20Male%20elbow%2C%20M12x1.5o.%2C%20Pipe%20exterior%20%C3%986%2C%20galvanised%20steel?unique=123f5a5)
|
Typennummer: WEVM126SST |
6.09 € | |
![[159201] RIEGLER Male elbow, M14x1.5o., Pipe exterior Ø8, galvanised steel](/web/image/product.template/215032/image_128/%5B159201%5D%20RIEGLER%20Male%20elbow%2C%20M14x1.5o.%2C%20Pipe%20exterior%20%C3%988%2C%20galvanised%20steel?unique=d744953)
|
Typennummer: WEVM148SST |
7.00 € | |

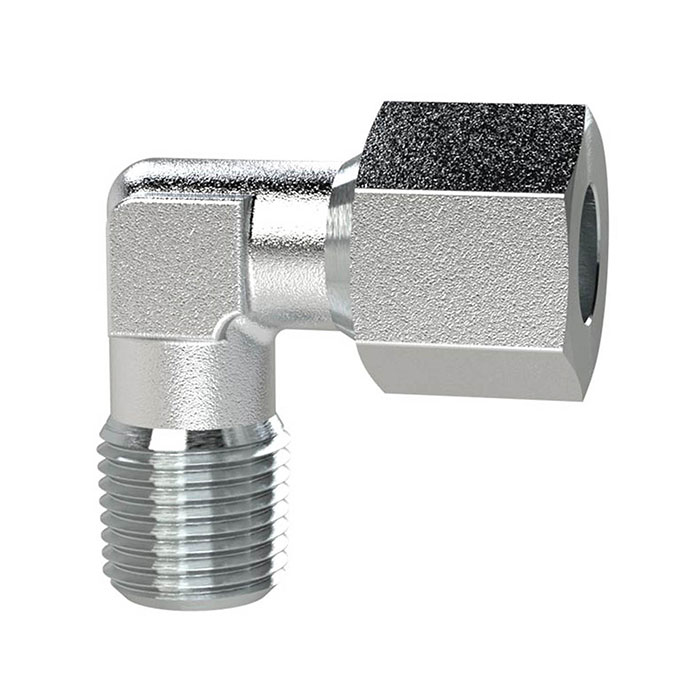

![[159203] RIEGLER Male elbow, M18x1.5o., Pipe exterior Ø12, galvanised steel](/web/image/product.template/215034/image_128/%5B159203%5D%20RIEGLER%20Male%20elbow%2C%20M18x1.5o.%2C%20Pipe%20exterior%20%C3%9812%2C%20galvanised%20steel?unique=83f28ba)
|
