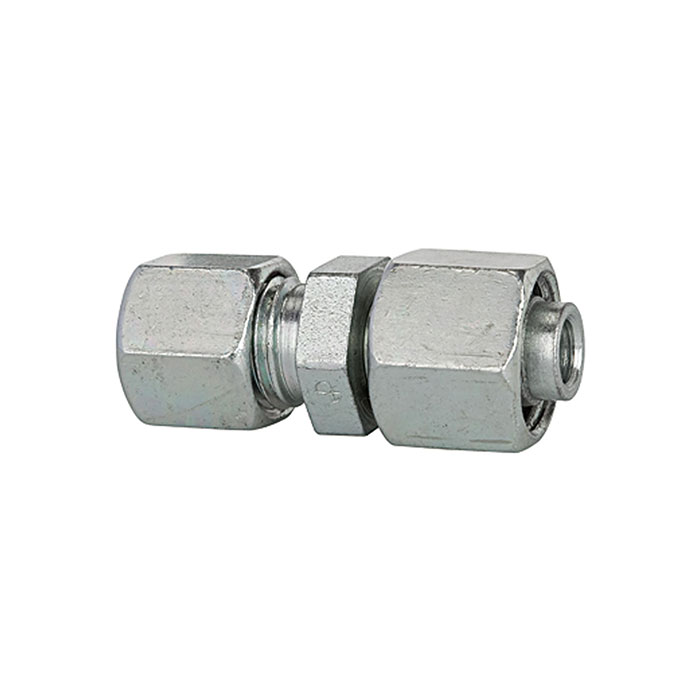

RIEGLER Reducer, Pipe ext. Ø Female connector 22/8 mm, galvanised steel
Typennummer: RED228LST
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Reduction, pipe outer Ø sockets 22/8 mm, PN max. 160 bar, SW1 24, SW2 17, SW3 36, galvanized steel
| Material | Galvanized steel (DIN 2353) |
| SW 1 | 24 mm |
| SW 2 | 17 mm |
| SW 3 | 36 mm |
| PN | 160 bar |
| L1 | 33.5 mm |
| L2 | 32 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Socket Ø | 22/8 mm |
| Class name | FLEX |
