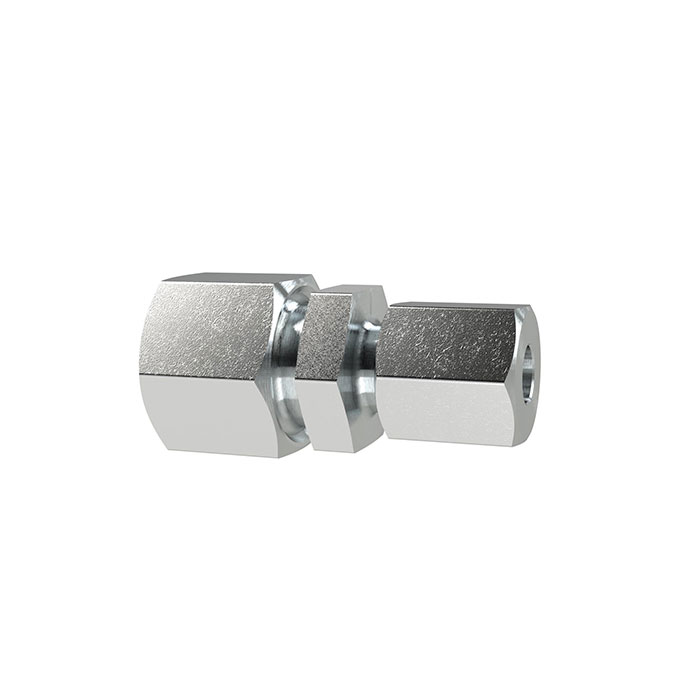

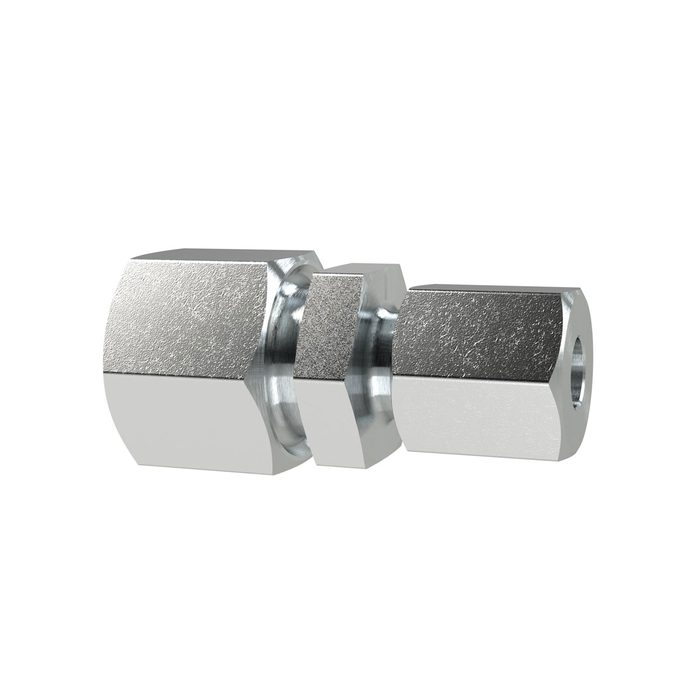

RIEGLER Straight reducer, Pipe exterior Ø 20/16, galvanised steel
Typennummer: GV2016SSTRED
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Straight reducer union, pipe outer Ø socket 20/16 mm, PN max. 400 bar, SW1 32, SW2 36, SW3 30, galvanized steel
| Material | Galvanized steel (DIN 2353) |
| SW 1 | 32 mm |
| SW 2 | 36 mm |
| SW 3 | 30 mm |
| PN | 400 bar |
| L1 | 61.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Socket Ø | 20/16 mm |
| Class name | FLEX |
