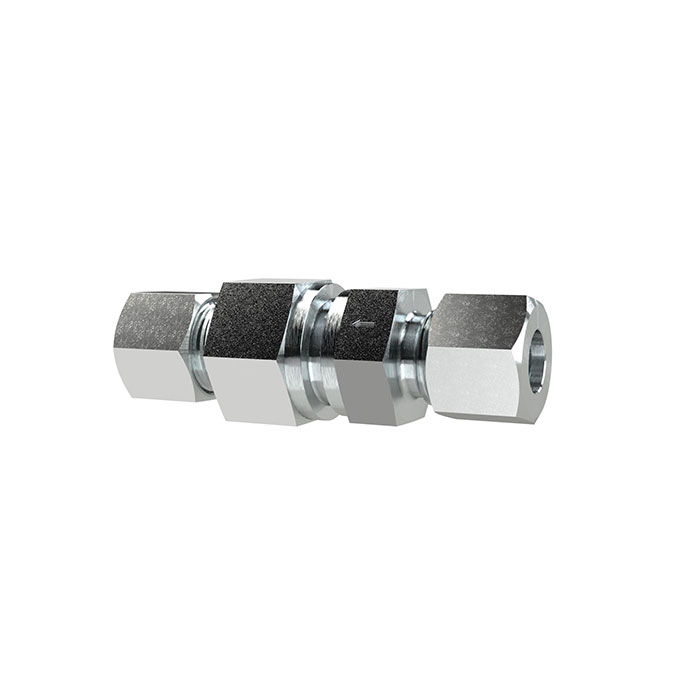

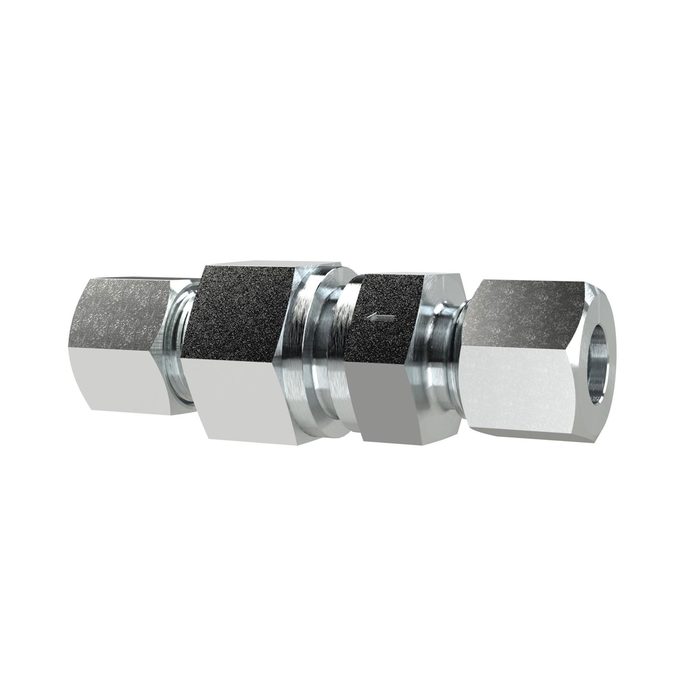

RIEGLER Non-return valve, Pipe ext. Ø 22mm, PN max. 160, galvanised steel
Type number: RSV22LST
EAN: 4047322640701
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Non-return valve, outer pipe Ø 22, PN max. 160, SW1 36, SW2 46, SW3 41, galvanized steel
| Opening pressure min. | 1 +/- 20 % bar |
| Material | Galvanized steel (DIN 2353) |
| SW 1 | 36 mm |
| SW 2 | 46 mm |
| SW 3 | 41 mm |
| Tube outer Ø | 22 mm |
| PN | 160 bar |
| L1 | 93.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
