RIEGLER Non-return valve, Pipe ext. Ø 16mm, PN max. 400, galvanised steel
Typennummer: RSV16SST
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Non-return valve, pipe outer Ø 16, PN max. 400, SW1 30, SW2 36, SW3 32, galvanized steel
| Opening pressure min. | 1 +/- 20 % bar |
| Material | Galvanized steel (DIN 2353) |
| SW 1 | 30 mm |
| SW 2 | 36 mm |
| SW 3 | 32 mm |
| Tube outer Ø | 16 mm |
| PN | 400 bar |
| L1 | 86.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[159412] RIEGLER Non-return valve, Pipe ext. Ø 10mm, PN max. 400, galvanised steel](/web/image/product.template/215243/image_128/%5B159412%5D%20RIEGLER%20Non-return%20valve%2C%20Pipe%20ext.%20%C3%98%2010mm%2C%20PN%20max.%20400%2C%20galvanised%20steel?unique=dbb3689)
|
Typennummer: RSV10SST |
23.04 € | |
![[159413] RIEGLER Non-return valve, Pipe ext. Ø 12mm, PN max. 400, galvanised steel](/web/image/product.template/215244/image_128/%5B159413%5D%20RIEGLER%20Non-return%20valve%2C%20Pipe%20ext.%20%C3%98%2012mm%2C%20PN%20max.%20400%2C%20galvanised%20steel?unique=e1861c2)
|
Typennummer: RSV12SST |
24.34 € | |

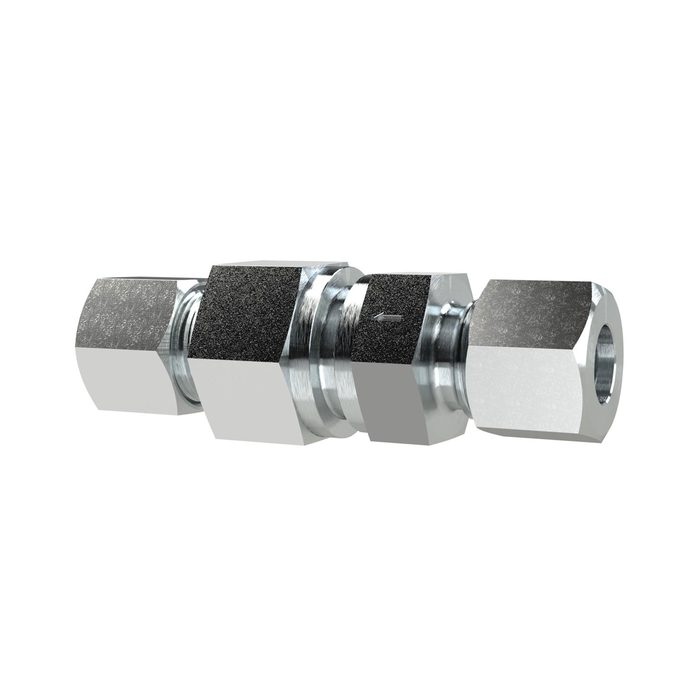

![[159414] RIEGLER Non-return valve, Pipe ext. Ø 14mm, PN max. 400, galvanised steel](/web/image/product.template/215245/image_128/%5B159414%5D%20RIEGLER%20Non-return%20valve%2C%20Pipe%20ext.%20%C3%98%2014mm%2C%20PN%20max.%20400%2C%20galvanised%20steel?unique=d764553)
|
Typennummer: RSV14SST |
41.27 € | |
![[159416] RIEGLER Non-return valve, Pipe ext. Ø 20mm, PN max. 400, galvanised steel](/web/image/product.template/215247/image_128/%5B159416%5D%20RIEGLER%20Non-return%20valve%2C%20Pipe%20ext.%20%C3%98%2020mm%2C%20PN%20max.%20400%2C%20galvanised%20steel?unique=337ba51)
|
Typennummer: RSV20SST |
63.31 € | |
![[159417] RIEGLER Non-return valve, Pipe ext. Ø 25mm, PN max. 250, galvanised steel](/web/image/product.template/215248/image_128/%5B159417%5D%20RIEGLER%20Non-return%20valve%2C%20Pipe%20ext.%20%C3%98%2025mm%2C%20PN%20max.%20250%2C%20galvanised%20steel?unique=2659cad)
|
Typennummer: RSV25SST |
78.25 € | |
![[159410] RIEGLER Non-return valve, Pipe ext. Ø 6mm, PN max. 400, galvanised steel](/web/image/product.template/215241/image_128/%5B159410%5D%20RIEGLER%20Non-return%20valve%2C%20Pipe%20ext.%20%C3%98%206mm%2C%20PN%20max.%20400%2C%20galvanised%20steel?unique=ebc67a9)
|
Typennummer: RSV6SST |
18.65 € | |

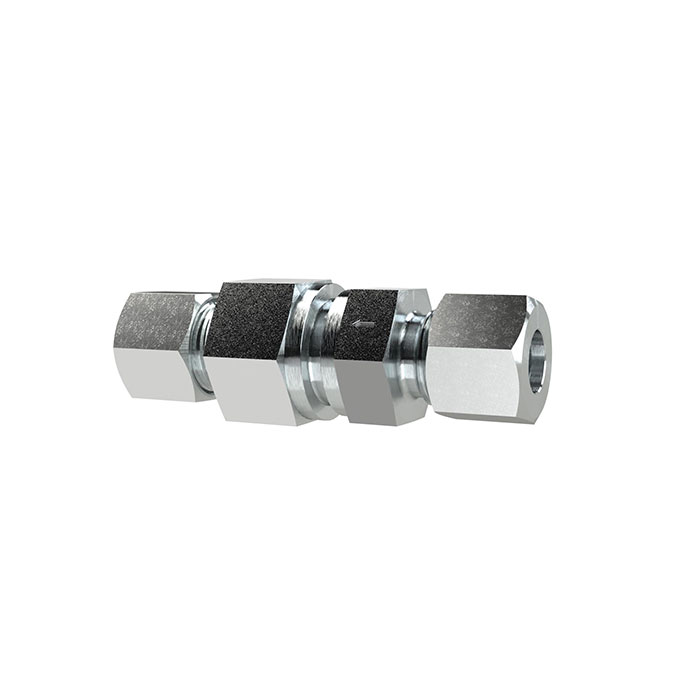

![[159411] RIEGLER Non-return valve, Pipe ext. Ø 8mm, PN max. 400, galvanised steel](/web/image/product.template/215242/image_128/%5B159411%5D%20RIEGLER%20Non-return%20valve%2C%20Pipe%20ext.%20%C3%98%208mm%2C%20PN%20max.%20400%2C%20galvanised%20steel?unique=0c2edc1)
|
