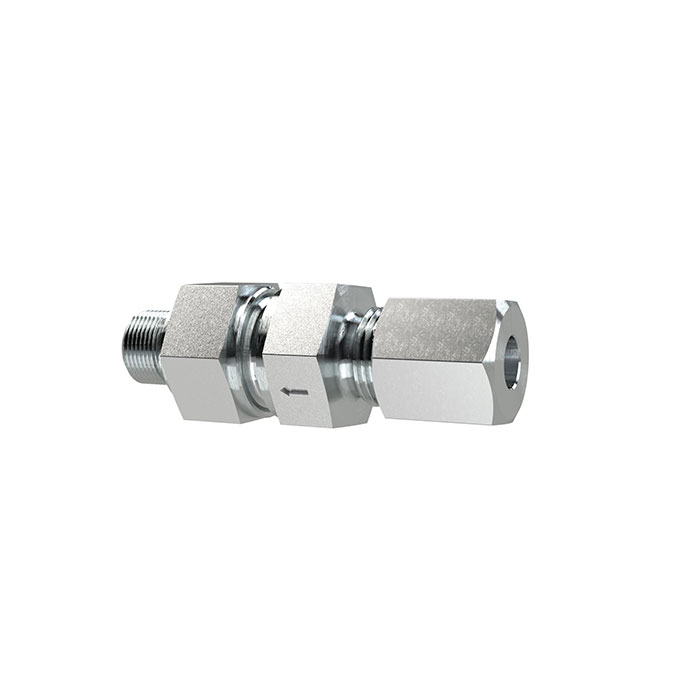

RIEGLER Non-return valve, G3/8o., Pipe ext. Ø12, PN max.250, galv. steel
Typennummer: RSV1238LST
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Non-return valve, G3/8a, cutting ring thread, pipe outer Ø 12, PN max. 250, SW1 22, SW2 27, SW3 30, galvanized steel, opening pressure: 0.8-1.2 bar
| Material | Galvanized steel (DIN 2353) |
| Thread | G 3/8 |
| SW 1 | 22 mm |
| SW 2 | 27 mm |
| SW 3 | 30 mm |
| Tube outer Ø | 12 mm |
| PN | 250 bar |
| L1 | 55 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[159454] RIEGLER Non-return valve, G1/2o., Pipe ext. Ø15, PN max.250, galv. steel](/web/image/product.template/215253/image_128/%5B159454%5D%20RIEGLER%20Non-return%20valve%2C%20G1-2o.%2C%20Pipe%20ext.%20%C3%9815%2C%20PN%20max.250%2C%20galv.%20steel?unique=a0b8ee8)
|
Typennummer: RSV1512LST |
27.56 € | |
![[159455] RIEGLER Non-return valve, G1/2o., Pipe ext. Ø18, PN max.160, galv. steel](/web/image/product.template/215254/image_128/%5B159455%5D%20RIEGLER%20Non-return%20valve%2C%20G1-2o.%2C%20Pipe%20ext.%20%C3%9818%2C%20PN%20max.160%2C%20galv.%20steel?unique=1010b44)
|
Typennummer: RSV1812LST |
37.95 € | |
![[159452] RIEGLER Non-return valve, G1/4o., Pipe ext. Ø10, PN max.250, galv. steel](/web/image/product.template/215251/image_128/%5B159452%5D%20RIEGLER%20Non-return%20valve%2C%20G1-4o.%2C%20Pipe%20ext.%20%C3%9810%2C%20PN%20max.250%2C%20galv.%20steel?unique=b64bd9c)
|
Typennummer: RSV1014LST |
17.89 € | |

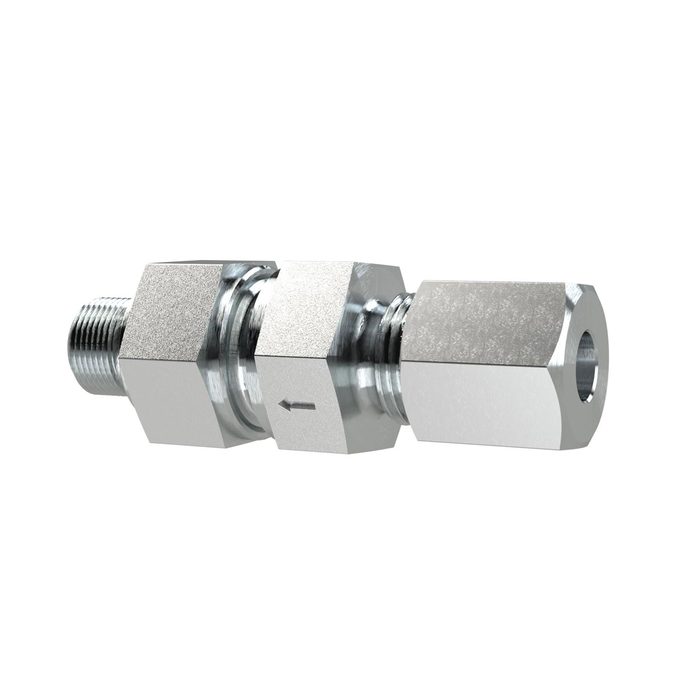

![[159451] RIEGLER Non-return valve, G1/4o., Pipe ext. Ø8mm, PN max.250, galv. steel](/web/image/product.template/215250/image_128/%5B159451%5D%20RIEGLER%20Non-return%20valve%2C%20G1-4o.%2C%20Pipe%20ext.%20%C3%988mm%2C%20PN%20max.250%2C%20galv.%20steel?unique=53a7868)
|
