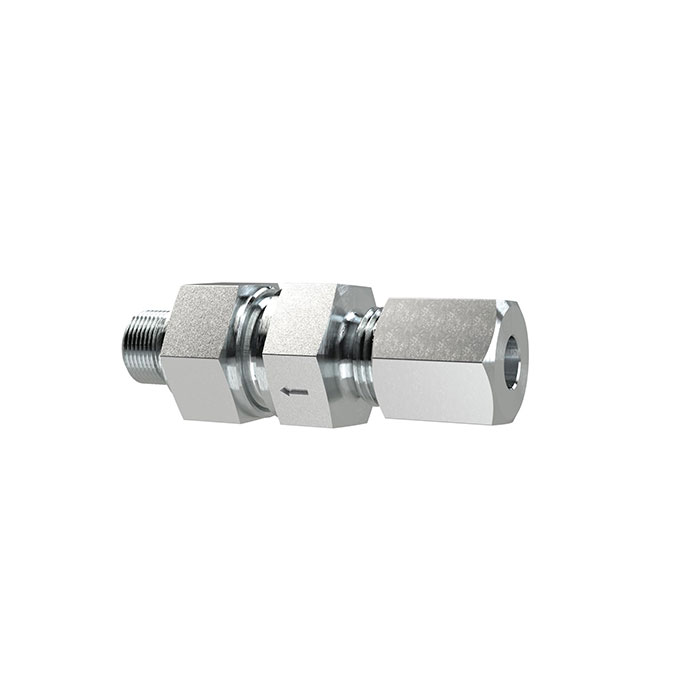

RIEGLER Non-return valve, G1/2o., Pipe ext. Ø14, PN max.400, galv. steel
Typennummer: RSV1412SST
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Check valve, G1/2a., cutting ring thread, pipe outer Ø14, PN max.400, SW1 27, SW2 27, SW3 32, galvanized steel, opening pressure:0.8-1.2bar
| Material | Galvanized steel (DIN 2353) |
| Thread | G 1/2 |
| SW 1 | 27 mm |
| SW 2 | 27 mm |
| SW 3 | 32 mm |
| Tube outer Ø | 14 mm |
| PN | 400 bar |
| L1 | 61 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[159463] RIEGLER Non-return valve, G1/2o., Pipe ext. Ø16, PN max.400, galv. steel](/web/image/product.template/215262/image_128/%5B159463%5D%20RIEGLER%20Non-return%20valve%2C%20G1-2o.%2C%20Pipe%20ext.%20%C3%9816%2C%20PN%20max.400%2C%20galv.%20steel?unique=1a97376)
|
Typennummer: RSV1612SST |
38.50 € | |
![[159458] RIEGLER Non-return valve, G1/4o., Pipe ext. Ø6mm, PN max.400, galv. steel](/web/image/product.template/215257/image_128/%5B159458%5D%20RIEGLER%20Non-return%20valve%2C%20G1-4o.%2C%20Pipe%20ext.%20%C3%986mm%2C%20PN%20max.400%2C%20galv.%20steel?unique=7508668)
|
Typennummer: RSV614SST |
18.79 € | |
![[159459] RIEGLER Non-return valve, G1/4o., Pipe ext. Ø8mm, PN max.400, galv. steel](/web/image/product.template/215258/image_128/%5B159459%5D%20RIEGLER%20Non-return%20valve%2C%20G1-4o.%2C%20Pipe%20ext.%20%C3%988mm%2C%20PN%20max.400%2C%20galv.%20steel?unique=8d1e67c)
|
Typennummer: RSV814SST |
18.98 € | |
![[159465] RIEGLER Non-return valve, G1o., Pipe ext. Ø25mm, PN max.250, galv. steel](/web/image/product.template/215264/image_128/%5B159465%5D%20RIEGLER%20Non-return%20valve%2C%20G1o.%2C%20Pipe%20ext.%20%C3%9825mm%2C%20PN%20max.250%2C%20galv.%20steel?unique=776bf02)
|
Typennummer: RSV251SST |
74.22 € | |
![[159464] RIEGLER Non-return valve, G3/4o., Pipe ext. Ø20, PN max.400, galv. steel](/web/image/product.template/215263/image_128/%5B159464%5D%20RIEGLER%20Non-return%20valve%2C%20G3-4o.%2C%20Pipe%20ext.%20%C3%9820%2C%20PN%20max.400%2C%20galv.%20steel?unique=e2bd48c)
|
Typennummer: RSV2034SST |
61.61 € | |

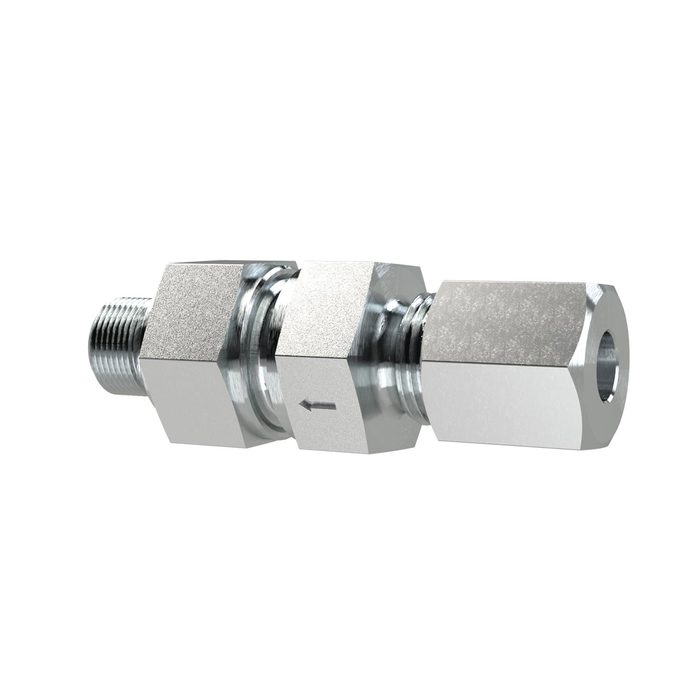

![[159460] RIEGLER Non-return valve, G3/8o., Pipe ext. Ø10, PN max.400, galv. steel](/web/image/product.template/215259/image_128/%5B159460%5D%20RIEGLER%20Non-return%20valve%2C%20G3-8o.%2C%20Pipe%20ext.%20%C3%9810%2C%20PN%20max.400%2C%20galv.%20steel?unique=7598599)
|
