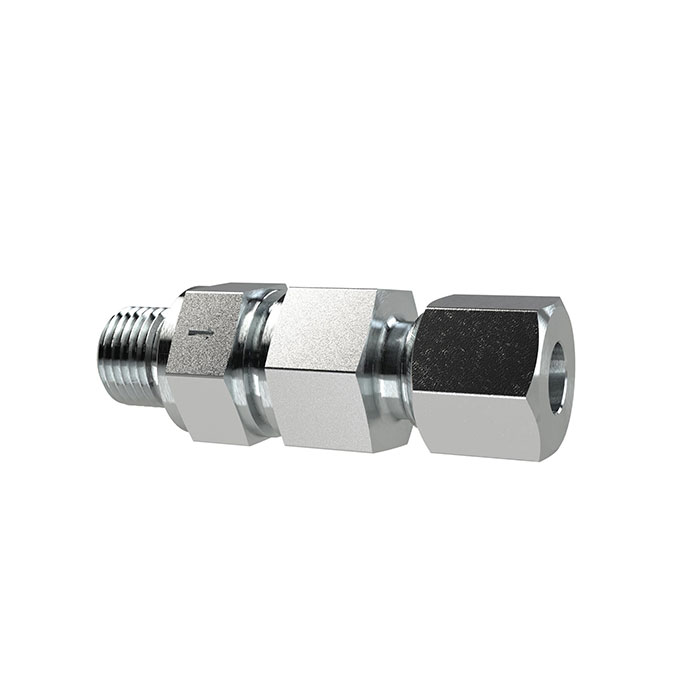

RIEGLER Non-return valve, G1/4o., Pipe ext. Ø8mm, PN max.250, galv. steel
Typennummer: RSV148LST
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Check valve, G1/4a., threaded cutting ring, pipe outer Ø8, PN max. 250, SW1 17, SW2 19, SW3 19, galvanized steel, opening pressure: 0.8-1.2 bar
| Material | Galvanized steel (DIN 2353) |
| Thread | G 1/4 |
| SW 1 | 17 mm |
| SW 2 | 19 mm |
| SW 3 | 19 mm |
| Tube outer Ø | 8 mm |
| PN | 250 bar |
| L1 | 44.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
