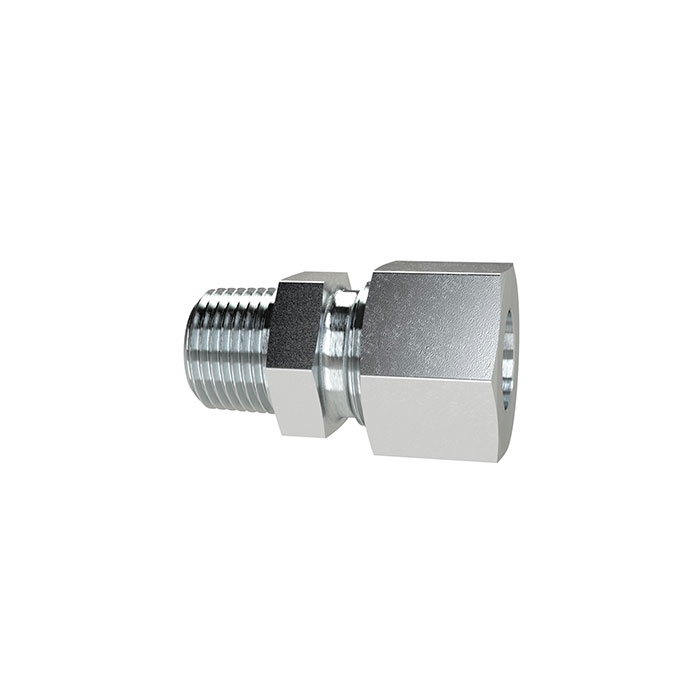

RIEGLER Straight screw-in fitting, NPT 1/4o. Pipe ext.Ø8, galv. steel
Typennummer: GE148SSTNPT
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Ger. screw-in plug made of galvanized steel (DIN 2353), for pneumatic installation, NPT 1/4 - type GE148SSTNPT
The RIEGLER Ger. Screw-in fitting, NPT 1/4 a., pipe Ø 8, galvanized steel creates a permanent, metal-to-metal sealing pipe connection according to the proven cutting ring principle. The housing is made of galvanized steel (DIN 2353). Connection thread NPT 1/4 - suitable for common industry standards. Permanently tight - even with vibration and temperature fluctuations.
Field of application
Typical areas of application: Compressed air distribution, hydraulics and process technology.
| Material | Galvanized steel (DIN 2353) |
| Thread | NPT 1/4 |
| SW 1 | 19 mm |
| SW 2 | 17 mm |
| Tube outer Ø | 8 mm |
| PN | 630 bar |
| L1 | 45 mm |
| L2 | 15 mm |
| Class name | FLEX |
