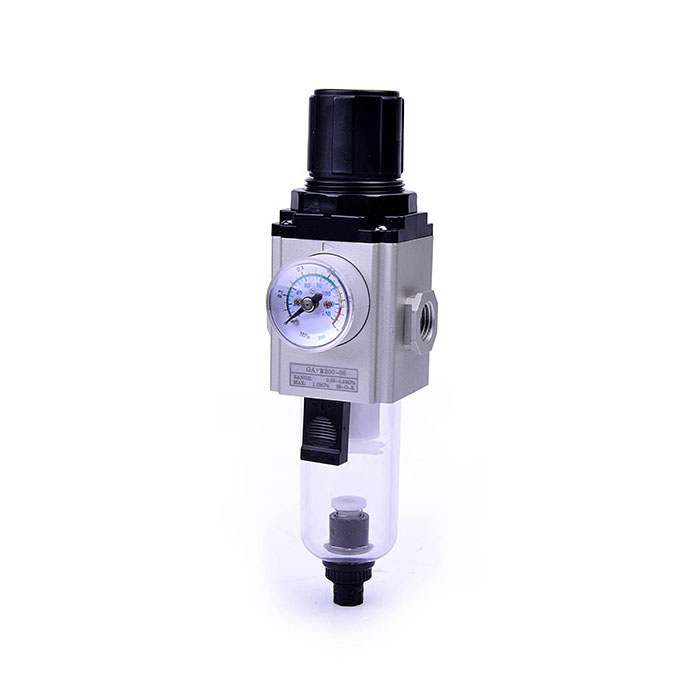

RIEGLER Filter regulator »GA-mini«, 5 µm, Size 200, G 1/8, 1.5 - 9 bar
Type number: GAC 05
EAN: 4047322666282
"GA-mini" filter regulator, with PC bowl and mounting bracket, 5 µm, BG 200, G 1/8, PE max. 10 bar, control range 1.5 - 9 bar, drain: HA
| Inlet pressure max. | 10 bar |
| Temperature range min. | -5 °C |
| Temperature range max. | 70 °C |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | GA-mini |
| Container | Polycarbonate container |
| Filter fineness | 5 µm |
| Spring cover | POM |
| Thread | G 1/8 |
| Flow rate | 1050 l/min |
| Control range min. | 1.5 bar |
| Control range max. | 9 bar |
| Condensate drain | semi-automatic |
| BG | 200 |
| A | 52.5 mm |
| B | 171 mm |
| C | 73 mm |
| D | 98 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
