AIRpipe end plugs, DN40
AIRpipe specializes in providing high-performance piping systems for compressed air and noble gases. Their products are known for their durability, reducing operating costs, and increasing productivity

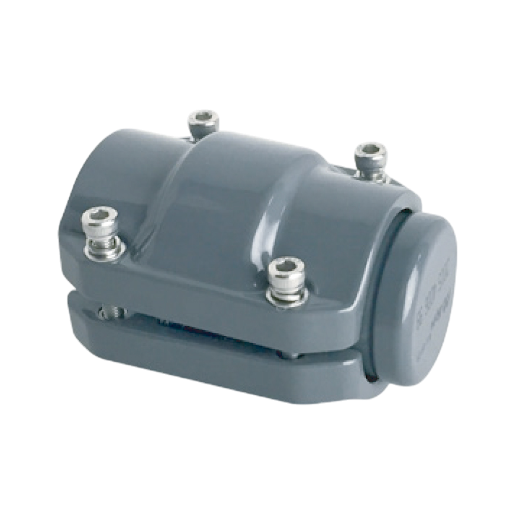

AIRpipe End plug, DN40 - Compressed air piping system
The AIRpipe end plug, DN40 is a pressure-tight end cap for the AIRpipe compressed air pipe. Closes open pipe ends securely and leak-free - reusable and removable at any time. Clamping ring connection with wide contact surface and concentric seal - leak-free even in the event of vibrations.
Technical data
- Nominal diameter: DN40 (OD 40.1 mm, ID 36.5 mm)
- Function: Pressure-tight pipe stopper - reusable
- Material: Powder-coated cast aluminum, corrosion-free, recyclable
- Operating pressure: Up to 15 bar (-20°C to +80°C)
Field of application
End cap for compressed air pipe ends. Also for temporary shut-off during conversion or extension work on the compressed air network.
| DN | 40 |
