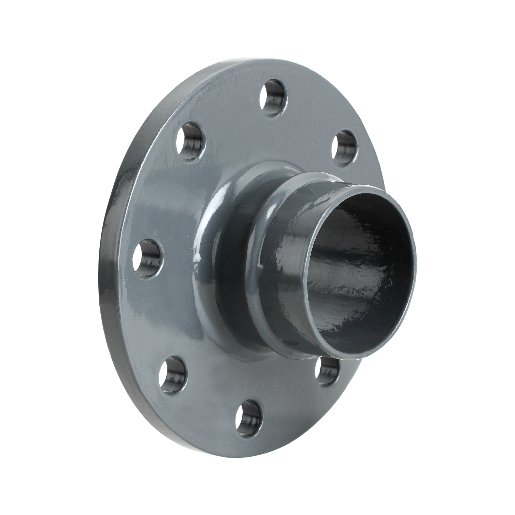

AIRpipe round flanch DN100, tube DN100
AIRpipe specializes in providing high-performance piping systems for compressed air and noble gases. Their products are known for their durability, reducing operating costs, and increasing productivity
AIRpipe DN100 round flange, DN100 pipe - compressed air piping system
The AIRpipe round flange DN100, pipe DN100 is an aluminum round flange for the compressed air wall connection in the AIRpipe piping system. Flange size according to EN 1092-1. Supplied with screws and sealing ring.
Technical data
- Nominal diameter: DN100
- Material: Cast aluminum - lightweight, corrosion-resistant
- Standard: Flange size according to EN 1092-1
- Operating pressure: Up to 15 bar (-20°C to +80°C)
- Scope of delivery: Incl. screws and sealing ring
Field of application
Compressed air wall connection for industrial compressed air distribution. Transition from compressed air pipe to stationary connections.
| DN | 100 |
