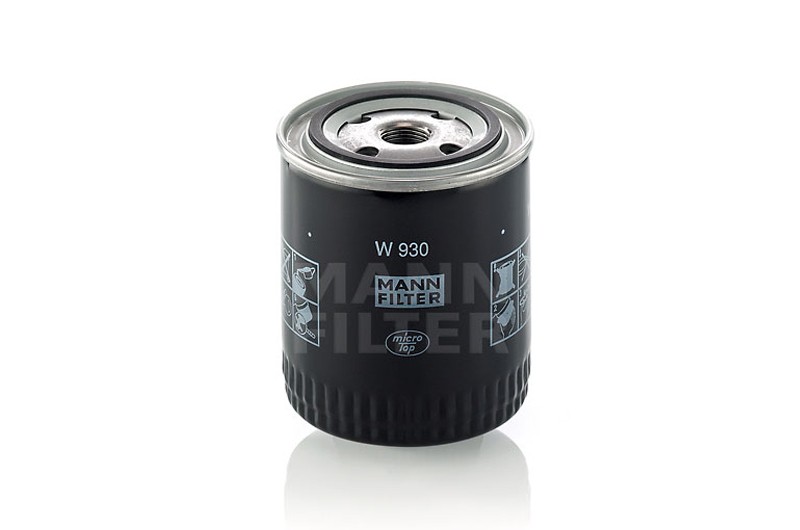

Mann Filter Oil filter W 930
Mann Filter spin-on filters used for oil filtration in the main flow.
On the raw side, the oil flows in through the holes on the outside of the filter base
and exits again through the central thread.
For example,
bypass valves, backflow preventers, riser pipes and the like are integrated into the spin-on filters as required.
Only available in limited quantities
We supply Mann filters as original goods from the Mann and Hummel industrial filter range for compressors and vacuum pumps
The globally recognized MANN-FILTER brand offers a broad filter portfolio in OE quality for the aftermarket and develops innovative solutions for the filtration of today and tomorrow
| A - Outer Ø / length (mm) | 93 |
| B - Inside Ø top / width (mm) | 62 |
| C - Inner Ø bottom (mm) | 71 |
| Height (mm) | 114 |
| G - Outlet / Thread size | 3/4 - 16 UNF |
| Opening pressure bypass valve (bar) | 2,5 |
| Non-return valve | 1 |
