Filtration Group High pressure double switching filter Pi 47004-014

Price:

4,495.51 €
    ​
English (US)
  2. Shop
  3. Filtration Group Duplex Filter
  4. Filtration Group High pressure double switching filter Pi 47004-014
Filtration Group High pressure double switching filter Pi 47004-010
Filtration Group High pressure double switching filter Pi 47004-010
4,345.24 € 4,345.24 €
Filtration Group High pressure double switching filter Pi 47006-010
Filtration Group High pressure double switching filter Pi 47006-010
4,375.49 € 4,375.49 €

Filtration Group High pressure double switching filter Pi 47004-014

https://www.filcom-technik.de/web/image/product.template/232330/image_1920?unique=4f3451a

High-pressure duplex filter Pi 47 DIN 2455
Nominal size 4 l/min,
includes:
- Visual maintenance indicator

4,495.51 € 4495.51 EUR 4,495.51 € VAT Included

4,607.00 € VAT Included

Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers
from 110 € free shipping Details shipping costs
Contact Us
Filtration Group

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

70304300

Category :

Filtration Group Duplex Filter

Weight :

0.01 kg

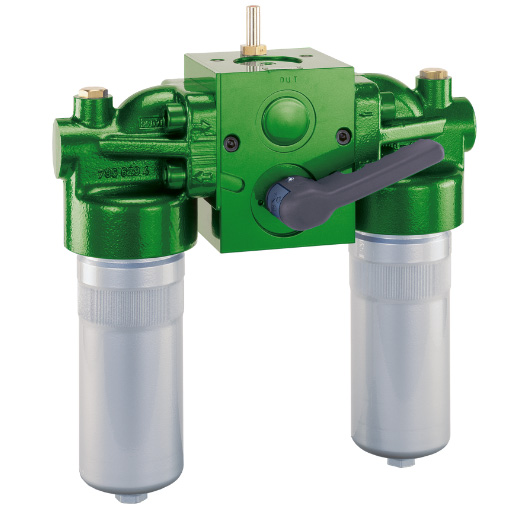

Filtration Group (formerly MAHLE) High-pressure duplex filter Pi 47004-014 / 70304300

  • Low space requirement due to compact design
  • Modular system for optimum filter selection
  • Thread design
  • Visual maintenance indicator
  • Minimal pressure loss due to streamlined design of the components
  • Available with high-efficiency PS filter elements
  • Ergonomic changeover lever with lever lock and locking mechanism
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements

    • When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded.

    Important note:
    We supply the Mahle Pi 474-14 high-pressure duplex filter without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Connection type Thread ISO 228
    Connection size G 3/4
    Display pressure of contamination indicator (bar) 5
    Evaluation of pollution indicators mechanical
    Operating temperature -10°C bis +120°C
    Contact type Contamination indicator Closer / Opener
    Max. Operating pressure (bar) 350
    Nominal size 40
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Seal material NBR/PTFE
    Filter housing material Steel
    Filter head material Steel
    FG-Datenblatt_Pi4700_NG40-400_de
    Download
