Filtration Group High pressure double switching filter Pi 47016-010

Price:

6,174.91 €
    ​
English (US)
  2. Shop
  3. Duplex Filters
  4. Filtration Group High pressure double switching filter Pi 47016-010
Filtration Group High pressure double switching filter Pi 47006-015
Filtration Group High pressure double switching filter Pi 47006-015
5,681.06 € 5,681.06 €
Filtration Group High pressure double switching filter Pi 47016-014
Filtration Group High pressure double switching filter Pi 47016-014
6,359.36 € 6,359.36 €

Filtration Group High pressure double switching filter Pi 47016-010

https://www.filcom-technik.de/web/image/product.template/232336/image_1920?unique=ac6fe03

High-pressure duplex filter Pi 47 DIN 2455
Nominal size 16 l/min,
includes:
- Hole for maintenance indicator

6,174.91 € 6174.91 EUR 6,174.91 € VAT Included

5,189.00 € VAT Included

  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs
Contact Us
Filtration Group

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

70304338

Category :

Duplex Filters

Weight :

0.01 kg

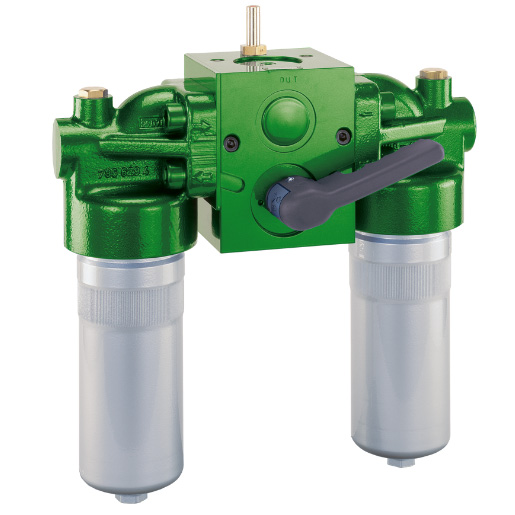

Filtration Group (formerly MAHLE) High-pressure duplex filter Pi 47016-010 / 70304338

  • Low space requirement due to compact design
  • Modular system for optimum filter selection
  • Thread design
  • Hole for maintenance indicator
  • Minimal pressure loss due to streamlined design of the components
  • Available with high-efficiency PS filter elements
  • Ergonomic changeover lever with lever lock and locking mechanism
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements

    • When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded.

    Important note:
    We supply the Mahle Pi 4716-1 high-pressure duplex filter without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Anschlussart Gewinde ISO 228
    Connection size G 11/2
    Betriebstemperatur (°C) -10°C bis +120°C
    Max. Operating pressure (bar) 315
    Nenngröße 160
    Seal material NBR/PTFE
    Filter housing material Stahl
    Werkstoff Filterkopf Stahl
    FG-Datenblatt_Pi4700_NG40-400_de
    Download
