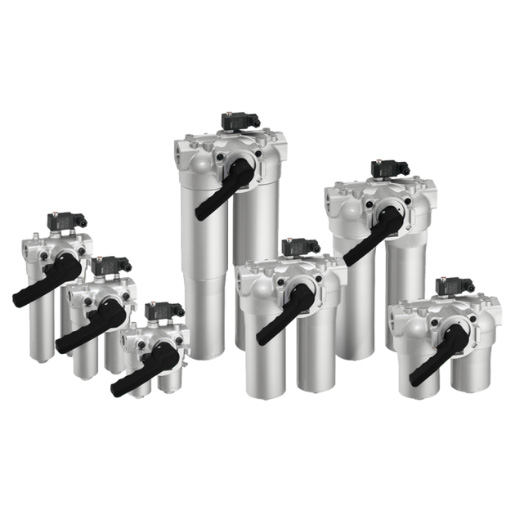

Filtration Group Low pressure double switching filter Pi 211063-058

Low-pressure duplex filter Pi 211 DIN 2455
Nominal size 63 l/min,
includes:
- Bypass
- Electrical maintenance indicator

6,697.89 € 6697.89 EUR 6,697.89 € VAT Included

6,864.00 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

70316207

Category :

Filtration Group Duplex Filter

Weight :

92.50 kg

Filtration Group (formerly MAHLE) Low-pressure duplex filter Pi 211063-058 / 70316207

Low space requirement due to compact design

Flange connection

Bypass

Visual maintenance indicator

Minimal pressure loss due to streamlined design of the components

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

Important note:
We supply the Mahle low-pressure duplex filter Pi 21163-58 without the filter element.
For suitable filter elements and accessories, see "Accessories".

Connection type	Flange ISO 6162-1
Connection size	DN 64
Display pressure of contamination indicator (bar)	2,2
Evaluation of pollution indicators	electrical / mechanical
Operating temperature	-10°C bis +120°C
Bypass valve Opening pressure (bar)	3,5
Contact type Contamination indicator	Closer / Opener
Max. Operating pressure (bar)	40
Nominal size	630
Type Contamination indicator	VA Differential pressure
Contamination indicator	ja
Seal material	NBR
Filter housing material	Steel
Filter head material	GGG

FG-Datenblatt_Pi2110_NG630_1000_de

Download
