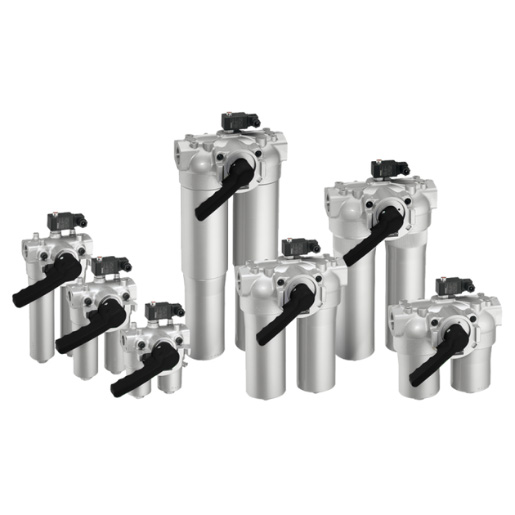

Filtration Group Low pressure double switching filter Pi 211100-057

Low-pressure duplex filter Pi 211 DIN 2455
Nominal size 1 l/min,
includes:
- Bypass
- Visual maintenance indicator

6,987.70 € 6987.7 EUR 6,987.70 € VAT Included

7,161.00 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

70316224

Category :

Filtration Group Duplex Filter

Weight :

102.00 kg

Filtration Group (formerly MAHLE) Low-pressure duplex filter Pi 211100-057 / 70316224

Low space requirement due to compact design

Flange connection

Bypass

Visual maintenance indicator

Minimal pressure loss due to streamlined design of the components

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

Important note:
We supply the Mahle Pi 2111-57 low-pressure duplex filter without the filter element.
For suitable filter elements and accessories, see "Accessories".

Connection type	Flange ISO 6162-1
Connection size	DN 64
Display pressure of contamination indicator (bar)	2,2
Evaluation of pollution indicators	mechanical
Operating temperature	-10°C bis +120°C
Bypass valve Opening pressure (bar)	3,5
Max. Operating pressure (bar)	40
Nominal size	1000
Type Contamination indicator	VA Differential pressure
Contamination indicator	ja
Seal material	NBR
Filter housing material	Steel
Filter head material	GGG

FG-Datenblatt_Pi2110_NG630_1000_de
