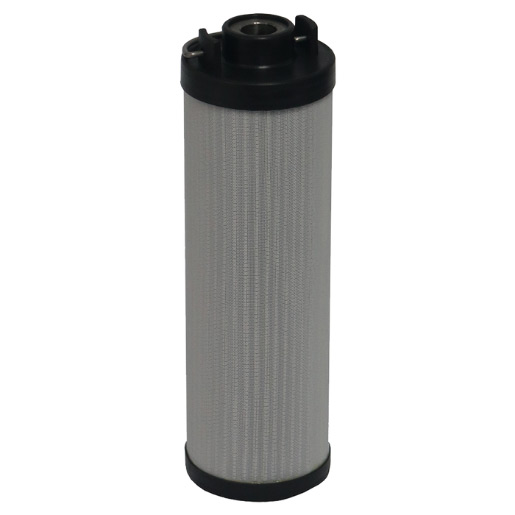

Filtration Group EcoParts Filter element for Hydac Filter 1700R050WHC
Manufacturer type designation: H 1700 RN 3 050 AV
Filtration fineness: 50 µm
Filter material: Wire mesh
Filtration Group
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
| Mounting diameter (mm) | 65.5 |
| Outer diameter (mm) | 114 |
| Bypass valve in the element (bar) | 3 |
| Differential pressure (bar) | 20 |
| Element type | EcoParts |
| End disc material | Plastic end disk PA |
| Filter fineness (micrometres) | 50 |
| Filter material | Wire mesh |
| Height (mm) | 792 |
| Inner diameter (mm) | 68.3 |
| Medium | Hydraulic oil |
| Original manufacturer | Hydac |
| Original manufacturer product number | 1700R050WHC |
| Seal material | NBR |
| Compatible with SF filter | HY 13504 |
