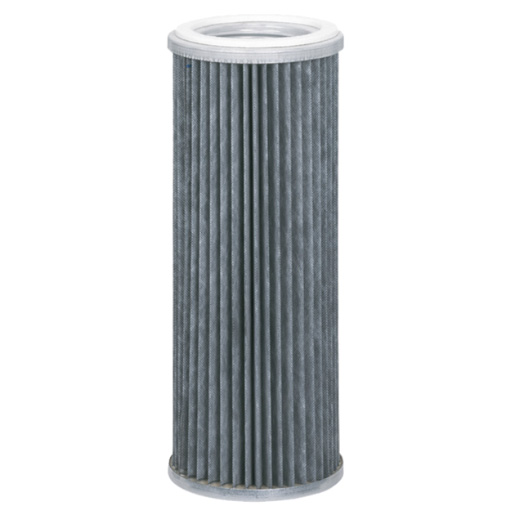

Filtration Group dust filter element 852 009 TI 07/1-0,3 V4A FDA 2-pack
Cylindrical dust filter element
Diameter:120 mm
Filter material: Polyester fleece with PTFE membrane, electrically dissipative
Filter area: 0.3 m²
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Dust filter element 852 9 TI 7/1-.3 V4A pack of 2 / 7328816
Lower filter surface load due to reduced inflow velocity
Even cleaning down to the lower area
3 % more free area - thus improved dust sedimentation
Longer element service life thanks to improved cleaning line
Notes:
- Deviations in the volume flow values are possible due to the type of dust and gas composition.
- The operating temperature depends on the medium/material.
| Outer diameter (mm) | 120 |
| Electrostatic discharge capability | yes |
| Element fastening | Rd 72 x 5 |
| Element shape | Cylindrical |
| Element type | 852 Series |
| End disc material | Sheet metal end plate |
| Filter material | TI 07/1 |
| Height (mm) | 200 |
| Inner diameter (mm) | 68 |
| Installation | Raw gas side |
| Medium | Air |
| Seal material | Silicone |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[72523290] Filtration Group Dust Filter Element 852 009 TI 07/1-0.3 V4A FDA, Pack of 2](/web/image/product.template/337074/image_128/%5B72523290%5D%20Filtration%20Group%20Dust%20Filter%20Element%20852%20009%20TI%2007-1-0.3%20V4A%20FDA%2C%20Pack%20of%202?unique=763eaa6)
|
Cylindrical dust filter element Diameter: 120 mm Filter material: Polyester nonwoven fabric with PTFE membrane, electrically conductive Filter area: 0.3 m² |
444.58 € | |
