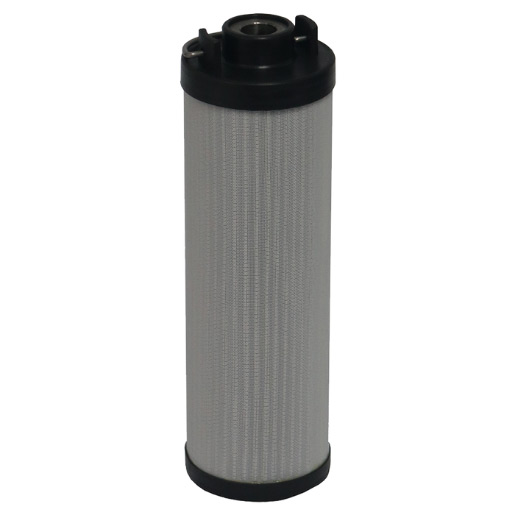

Filtration Group EcoParts Filter element for Hydac Filter 1300R100WHC
Manufacturer type designation: H 1300 RN 3 100 AV
Filtration fineness: 100 µm
Filter material: Wire mesh
Filtration Group
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
| Mounting diameter (mm) | 95 |
| Outer diameter (mm) | 143 |
| Bypass valve in the element (bar) | 3 |
| Differential pressure (bar) | 20 |
| Element type | EcoParts |
| End disc material | Plastic end disk PA |
| Filter fineness (micrometres) | 100 |
| Height (mm) | 483 |
| Inner diameter (mm) | 96.3 |
| Medium | Hydraulic oil |
| Original manufacturer | Hydac |
| Original manufacturer product number | 1300R100WHC |
| Seal material | NBR |
| Compatible with SF filter | HY 13429 |
| Compatible with FILTREC | RHR1300S100B3/AB1 |
