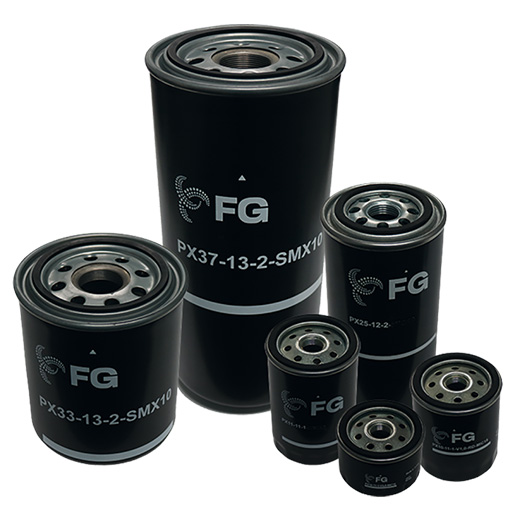

Filtration Group Spin-on cartridge PX PX36-13-2-Smx10
Screw-on cartridge PX36-13-2-Smx1 (formerly HC 32)
for low-pressure filters
rated size 13 l/min
filter material glass fiber
filter fineness 1 µm
rated pressure 16 bar
filter surface area 54 cm²
Item no. 77551 has been replaced by item no.: 7541532
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Screw-on cartridge PX36-13-2-Smx1 (formerly HC 32) / 7541532
| Outer diameter (mm) | 136.3 |
| Outer seal diameter (mm) | 111 |
| Inner seal diameter (mm) | 100 |
| Filter fineness (micrometres) | 10 |
| Filter material | Glass fiber |
| Thread designation | 11/2-16UN-2B |
| Nominal height (mm) | 238 |
| Seal material | NBR |
| Permitted operating pressure (bar) | 16 |
| Filter material | Glass fiber |
