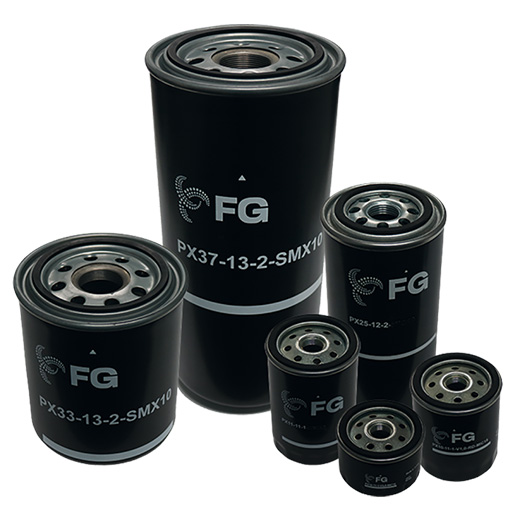

Filtration Group Spin-on cartridge PX PX37-13-2-Smx10
Screw-on cartridge PX37-13-2-Smx1 (formerly HC 35)
for low-pressure filters
rated size 16 l/min
filter material glass fiber
filter fineness 1 µm
rated pressure 16 bar
filter area 74 cm²
Item no. 77643844 has been replaced by item no. 7541538
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Screw-on cartridge PX37-13-2-Smx1 (formerly HC 35) / 7541538
Optimum filter selection thanks to modular system
Minimal pressure loss due to streamlined design of the components
High dirt holding capacity and differential pressure stability of the elements
Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
| Outer diameter (mm) | 136.3 |
| Outer seal diameter (mm) | 111 |
| Inner seal diameter (mm) | 100 |
| Filter fineness (micrometres) | 10 |
| Filter material | Glass fiber |
| Thread designation | 11/2-16UN-2B |
| Nominal height (mm) | 308 |
| Seal material | NBR |
| Permitted operating pressure (bar) | 16 |
| Filter material | Glass fiber |
