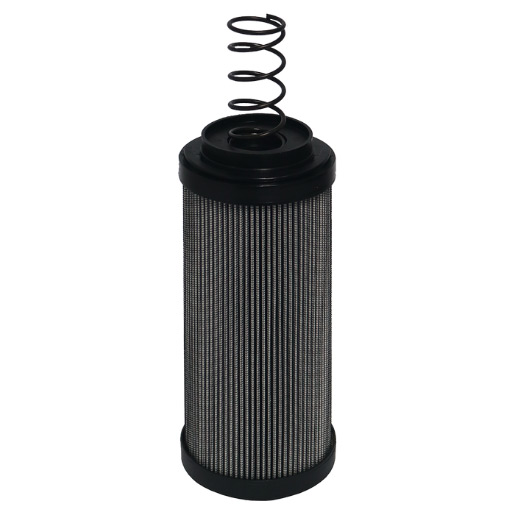

Filtration Group EcoParts Filter element for MP Filter MF1002M25NB
Manufacturer type designation: MP 1002 RN 3 025 / V1.75
Filtration fineness: 25 µm
Filter material: Wire mesh
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
| Mounting diameter (mm) | 28.5 |
| Outer diameter (mm) | 70 |
| Bypass valve in the element (bar) | 1.7 |
| Element type | EcoParts |
| Filter fineness (micrometres) | 25 |
| Filter material | Wire mesh |
| Height (mm) | 136.5 |
| Inner diameter (mm) | 28.5 |
| Medium | Hydraulic oil |
| Original manufacturer | MP-Filtri |
| Original manufacturer product number | MF1002M25NB |
| Seal material | NBR |
| Compatible with SF filter | HY 18432 |
