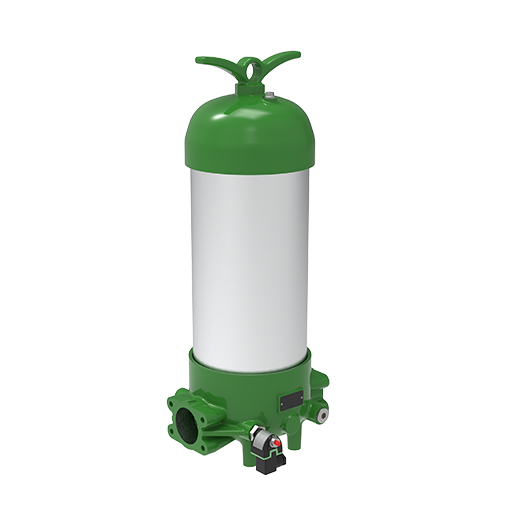

Filtration Group low pressure filter Pi 260065-134
Low-pressure filter Pi 260, rated 650 l/min,
rated pressure 25 bar,
without:
- bypass
- with electrical maintenance indicator 3.5 bar
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Product no. :
70554916Category :
Filtration Group Low Pressure Filter| Volume pressure vessel | 15,90 l |
| Test pressure (bar) | 36 |
| Connection size | SAE 2,5 |
| Nominal size (l/min) | 650 |
| Filter head material | ALU |
| Filter housing material | ALU |
| Operating temperature | -30°C bis +120°C |
| Max. Operating pressure (bar) | 25 |
| Connection type | Flange ISO 6162-1 |
| Seal material | NBR |
