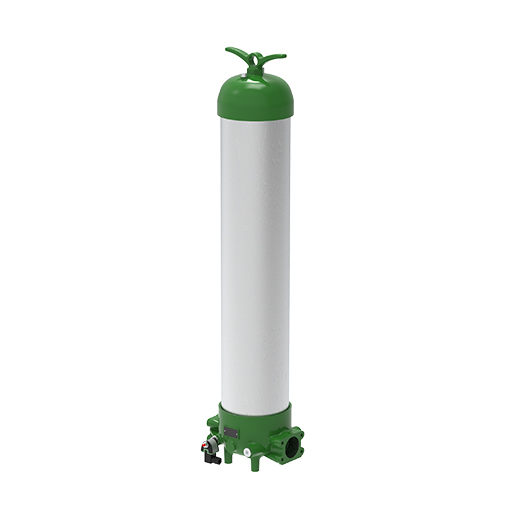

Filtration Group low pressure filter Pi 2600110-134
Low-pressure filter Pi 260, rated 1100 l/min,
rated pressure 25 bar,
without:
- bypass
- with electrical maintenance indicator 3.5 bar
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Product no. :
70554938Category :
Filtration Group Low Pressure Filter| Volume pressure vessel | 30,60 l |
| Test pressure (bar) | 36 |
| Connection size | SAE 2,5 |
| Nominal size (l/min) | 1100 |
| Filter head material | ALU |
| Filter housing material | ALU |
| Operating temperature | -30°C bis +120°C |
| Max. Operating pressure (bar) | 25 |
| Connection type | Flange ISO 6162-1 |
| Seal material | NBR |
