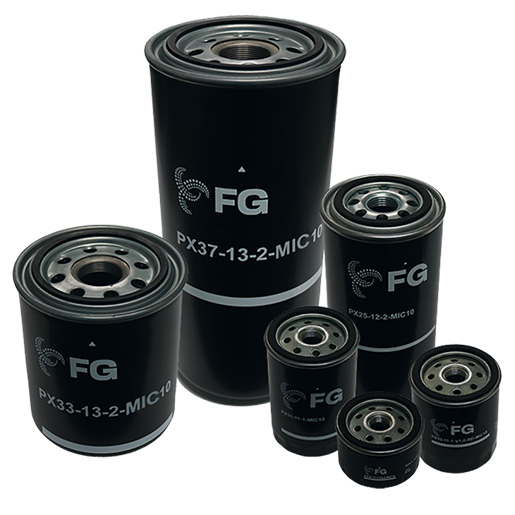

Filtration Group PX24-12-3-MIC10 (ex. Spin-on cartridge HC 23)

Price:

40.50 €

English (US)
  2. Shop
  3. Filtration Group Spin-On Cartridges
  4. Filtration Group PX24-12-3-MIC10 (ex. Spin-on cartridge HC 23)
Filtration Group PX22-12-1-V2,5-RD-MIC 10 (ex. Spin-on cartridge OC 0172)
Filtration Group PX22-12-1-V2,5-RD-MIC 10 (ex. Spin-on cartridge OC 0172)
23.23 € 23.23 €
Filtration Group Spin-on cartridge PX PX36-13-2-Mic25
Filtration Group Spin-on cartridge PX PX36-13-2-Mic25
104.41 € 104.41 €

Filtration Group PX24-12-3-MIC10 (ex. Spin-on cartridge HC 23)

https://www.filcom-technik.de/web/image/product.template/55875/image_1920?unique=6a43c38

Screw-on cartridge PX24-12-3-MIC1 (formerly HC 23) for low-pressure filters
Nominal size 4 l/min
Filter material cellulose
Filter fineness 1 µm
Nominal pressure 1 bar
Filter surface area 41 cm²

Item no. 775218 has been replaced by item no.: 7245674

40.50 € 40.5 EUR 40.50 € VAT Included

41.50 € VAT Included

(40.50 € / pcs)

Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Filtration Group

Filtration Group

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

72456704

Category :

Filtration Group Spin-On Cartridges

Weight :

0.86 kg

Filtration Group (formerly MAHLE) Spin-on cartridge HC 23 spin-on hydraulic filter / 775218

  • Optimum filter selection thanks to modular system
  • Minimal pressure loss due to streamlined design of the components
  • High dirt holding capacity and differential pressure stability of the elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
    • Outer diameter (mm) 93
    Outer seal diameter (mm) 72
    Inner seal diameter (mm) 62
    Filter fineness (micrometres) 10
    Filter material Cellulose
    Thread designation 1"-12UNF-2B
    Nominal height (mm) 178.5
    Seal material NBR
    Permitted operating pressure (bar) 25
    Filter material Zellulose
