Filtration Group Low pressure filter PI 2202-060

https://www.filcom-technik.de/web/image/product.template/52316/image_1920?unique=7796e26

Low-pressure filter Pi 222-6
Nominal size 25 l/min
- without bypass and visual/electrical maintenance indicator

Suction filter Pi 222-6
Nominal size 1 l/min,
- without bypass and vacuum switch / vacuum gauge

165.65 € 165.65 EUR 165.65 € VAT Included

174.00 € VAT Included

(165.65 € / pcs)

  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs
Contact Us
Filtration Group

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

77665656

Category :

Low Pressure Filters

Weight :

0.35 kg

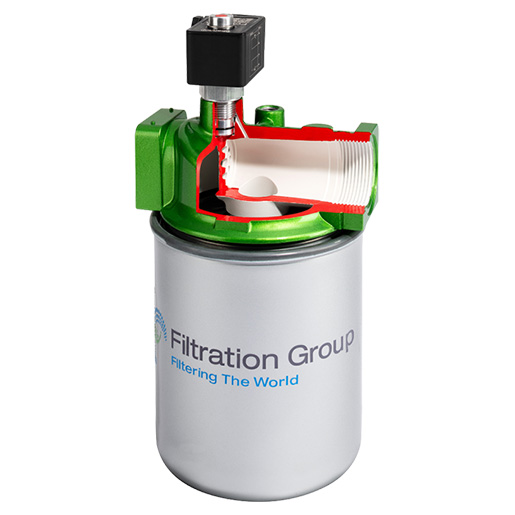

Filtration Group (formerly MAHLE) Low pressure filter / suction filter Pi 222-6 / 77665656

  • Intended for installation in pipes
  • Modular system for optimum filter selection
  • Flow-optimized design of the components, resulting in minimal pressure loss
  • Compact design means less space required
  • Version with threaded connections
  • Available with high-efficiency Mic or Sm-x filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements

    • This filter can be used both as a low-pressure filter and as a suction filter. Please note the different nominal sizes.

    When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded

    Important note:
    We supply the Mahle low pressure filter / suction filter Pi 222-6 without the filter element.
    For suitable filter elements, see "Accessories".

    Connection type Thread ISO 228
    Connection size G1/2
    Display pressure of contamination indicator (bar) 2,2
    Evaluation of pollution indicators electrical / mechanical
    Operating temperature -10°C bis +120°C
    Contact type Contamination indicator Closer / Opener
    Max. Operating pressure (bar) 10
    Nominal size 25
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Seal material NBR
    Filter head material ALU
