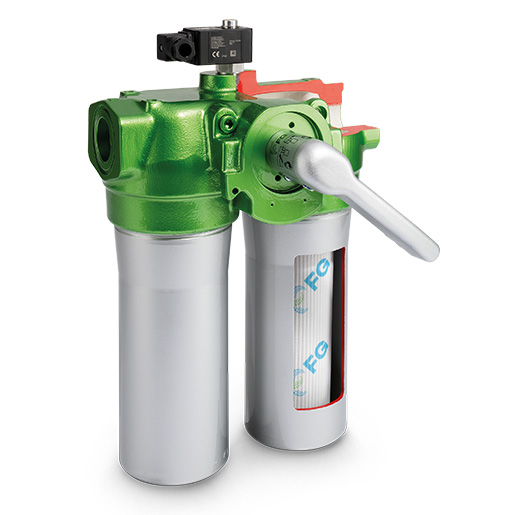

Filtration Group Low-pressure duplex filter PI 2115-069

https://www.filcom-technik.de/web/image/product.template/55141/image_1920?unique=b9685d6

Low-pressure double-switching filter Pi 21
Nominal size 15 l/min,
includes:
- Electrical maintenance indicator

1,242.50 € 1242.5 EUR 1,242.50 € VAT Included

1,243.00 € VAT Included

(1,242.50 € / pcs)
Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers
from 110 € free shipping Details shipping costs
Contact Us
Filtration Group

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

77774540

Category :

Filtration Group Duplex Filter

Weight :

8.40 kg

Filtration Group (formerly MAHLE) Low pressure duplex filter Pi 2115-69 / 7777454

  • Low space requirement due to compact design
  • Electrical maintenance indicator
  • Threaded connection
  • Changeover plug on dirty side only
  • Ergonomic changeover lever with pressure compensation and lever lock
  • Minimal pressure loss due to streamlined design of the components
  • Available with high-efficiency PS filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements

    • When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded.

    Important note:
    We supply the Mahle Pi 2115-69 low-pressure duplex filter without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Connection type Thread ISO 228
    Connection size G 1 1/2
    Display pressure of contamination indicator (bar) 2,2
    Evaluation of pollution indicators electrical / mechanical
    Operating temperature -10°C bis +120°C
    Contact type Contamination indicator Closer / Opener
    Max. Operating pressure (bar) 32
    Nominal size 150
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Seal material NBR
    Filter housing material ALU
    Filter head material ALU
