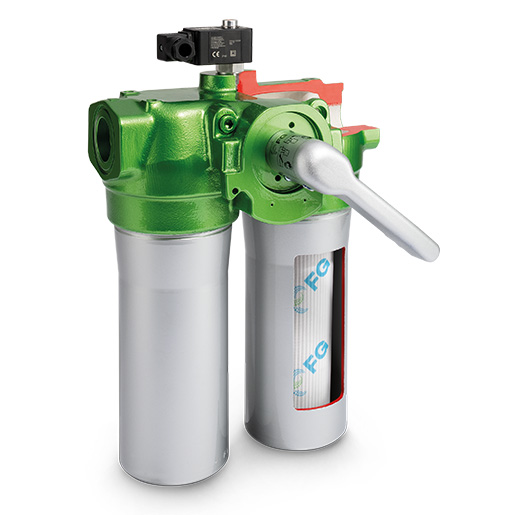

Filtration Group Low-pressure duplex filter PI 2105-069

https://www.filcom-technik.de/web/image/product.template/52361/image_1920?unique=7796e26

Low-pressure duplex filter Pi 21
Nominal size 5 l/min,
includes:
- Electrical maintenance indicator

924.39 € 924.39 EUR 924.39 € VAT Included

971.00 € VAT Included

(924.39 € / pcs)

  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs
Contact Us
Filtration Group

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

77810245

Category :

Duplex Filters

Weight :

3.25 kg

Filtration Group (formerly MAHLE) Low-pressure duplex filter Pi 215-69 / 7781245

  • Low space requirement due to compact design
  • Electrical maintenance indicator
  • Threaded connection
  • Changeover plug on dirty side only
  • Ergonomic changeover lever with pressure compensation and lever lock
  • Minimal pressure loss due to streamlined design of the components
  • Available with high-efficiency PS filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements

    • When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded.

    Important note:
    We supply the Mahle Pi 215-69 low-pressure duplex filter without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Connection type Thread ISO 228
    Connection size G 1
    Display pressure of contamination indicator (bar) 2,2
    Evaluation of pollution indicators electrical / mechanical
    Operating temperature -10°C bis +120°C
    Contact type Contamination indicator Closer / Opener
    Max. Operating pressure (bar) 63
    Nominal size 50
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Seal material NBR
    Filter housing material ALU
    Filter head material ALU
