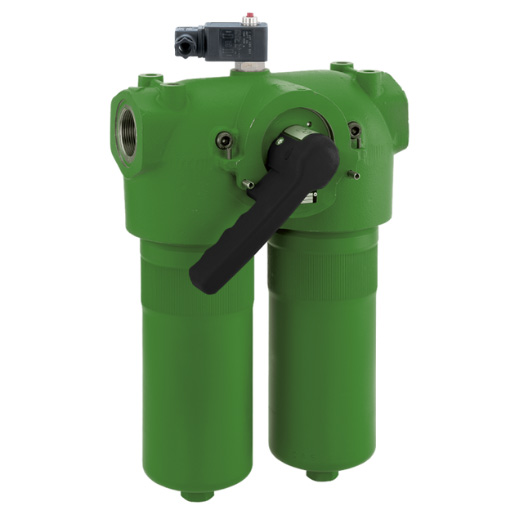

Filtration Group Medium pressure double switching filter Pi 3711-013

Medium-pressure duplex filter Pi 37
Nominal size 11 l/min,
includes:
- Bypass
- Electrical maintenance indicator

1,459.80 € 1459.8 EUR 1,459.80 € VAT Included

1,496.00 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

77810385

Category :

Filtration Group Duplex Filter

Weight :

14.76 kg

Filtration Group (formerly MAHLE) Medium-pressure duplex filter Pi 3711-013 / 77810385

Low space requirement due to compact design

Modular system for optimum filter selection

Minimal pressure loss due to streamlined design of the components

Bypass

Electrical maintenance indicator

Changeover plug on dirty side only

Ergonomic changeover lever with lever lock and pressure compensation

One-handed operation

Available with high-efficiency PS filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

Important note:
We supply the Mahle medium-pressure duplex filter Pi 3711-13 without the filter element.
For suitable filter elements and accessories, see "Accessories".

Connection type	Thread ISO 228
Connection size	G 1
Display pressure of contamination indicator (bar)	5
Evaluation of pollution indicators	electrical / mechanical
Operating temperature	-10°C bis +120°C
Bypass valve Opening pressure (bar)	7
Contact type Contamination indicator	Closer / Opener
Max. Operating pressure (bar)	315
Nominal size	110
Type Contamination indicator	VA Differential pressure
Contamination indicator	ja
Seal material	NBR
Filter housing material	Steel
Filter head material	GGG
