Filtration Group Medium pressure double switching filter Pi 3745-013

Price:

2,531.13 €
    ​
English (US)
  2. Shop
  3. Duplex Filters
  4. Filtration Group Medium pressure double switching filter Pi 3745-013
Filtration Group Medium pressure double switching filter Pi 3745-012
Filtration Group Medium pressure double switching filter Pi 3745-012
2,447.83 € 2,447.83 €
Filtration Group Medium pressure changeover filter PI3730-015/PIS 3097-160 BAR PI 8530 DRG 100 built-in
Filtration Group Medium pressure changeover filter PI3730-015/PIS 3097-160 BAR PI 8530 DRG 100 built-in
2,644.18 € 2,644.18 €

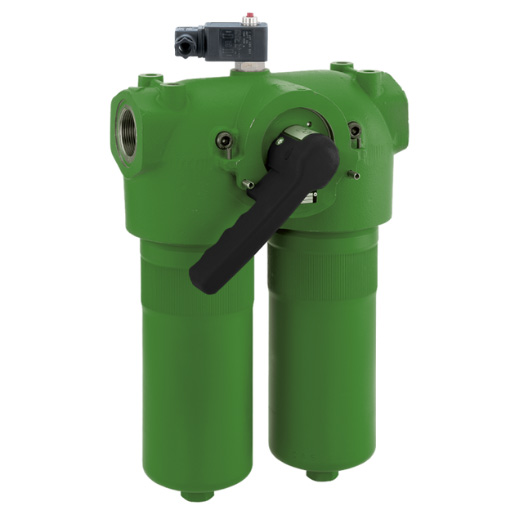

Filtration Group Medium pressure double switching filter Pi 3745-013

https://www.filcom-technik.de/web/image/product.template/233556/image_1920?unique=d216f59

Medium-pressure duplex filter Pi 37
Nominal size 45 l/min,
including:
- Bypass
- Electrical maintenance indicator

2,531.13 € 2531.13 EUR 2,531.13 € VAT Included

2,127.00 € VAT Included

  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs
Contact Us
Filtration Group

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

77814403

Category :

Duplex Filters

Weight :

41.40 kg

Filtration Group (formerly MAHLE) Medium-pressure duplex filter Pi 3745-13 / 7781443

  • Low space requirement due to compact design
  • Modular system for optimum filter selection
  • Minimal pressure loss due to streamlined design of the components
  • Bypass
  • Electrical maintenance indicator
  • Changeover plug on dirty side only
  • Ergonomic changeover lever with lever lock and pressure compensation
  • One-handed operation
  • Available with high-efficiency PS filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements


    • Important note:
    We supply the Mahle medium-pressure duplex filter Pi 3745-13 without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Connection type Thread ISO 228
    Connection size G 1 1/2
    Display pressure of contamination indicator (bar) 5
    Evaluation of pollution indicators electrical / mechanical
    Operating temperature -10°C bis +120°C
    Bypass valve Opening pressure (bar) 7
    Contact type Contamination indicator Closer / Opener
    Max. Operating pressure (bar) 210
    Nominal size 450
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Seal material NBR
    Filter housing material Steel
    Filter head material GGG
    FG-Datenblatt_Pi370_NG450_de
    Download
