Filtration Group PI 3745-14 Double switching filter, without element

https://www.filcom-technik.de/web/image/product.template/55620/image_1920?unique=f147cc4

Medium-pressure duplex filter Pi 37
Nominal size 45 l/min,
includes:
- Visual maintenance indicator

2,021.19 € 2021.19 EUR 2,021.19 € VAT Included

2,022.00 € VAT Included

(2,021.19 € / pcs)
Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers
from 110 € free shipping Details shipping costs
Contact Us
Filtration Group

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

77814411

Category :

Filtration Group Duplex Filter

Weight :

41.80 kg

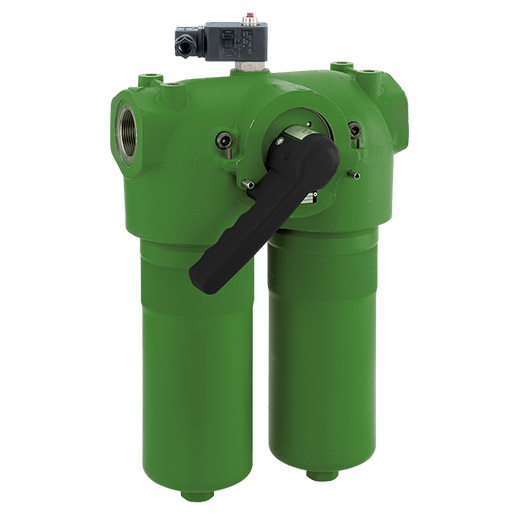

Filtration Group (formerly MAHLE) Medium-pressure duplex filter Pi 3745-14 / 77814411

  • Low space requirement due to compact design
  • Modular system for optimum filter selection
  • Minimal pressure loss due to streamlined design of the components
  • Visual maintenance indicator
  • Changeover plug on dirty side only
  • Ergonomic changeover lever with lever lock and pressure compensation
  • One-handed operation
  • Available with high-efficiency PS filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements

    • When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded.


    Important note:
    We supply the Mahle medium-pressure duplex filter Pi 3745-14 without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Connection type Thread ISO 228
    Connection size G 1 1/2
    Display pressure of contamination indicator (bar) 5
    Evaluation of pollution indicators mechanical
    Operating temperature -10°C bis +120°C
    Contact type Contamination indicator Closer / Opener
    Max. Operating pressure (bar) 210
    Nominal size 450
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Seal material NBR
    Filter housing material Steel
    Filter head material GGG
