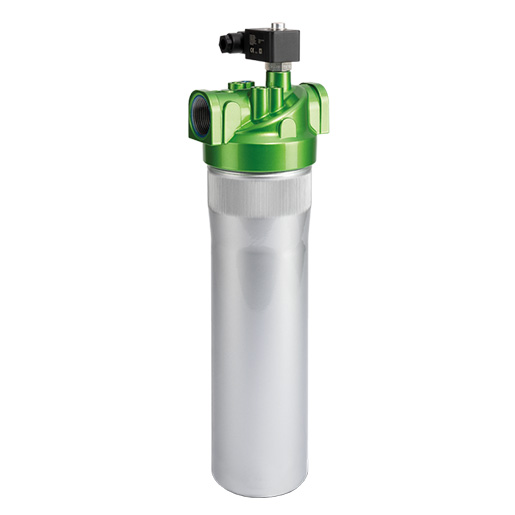

Filtration Group Low pressure filter Pi 2015-060
Low-pressure filter Pi 2,
rated size 15 l/min,
- without bypass, vacuum pressure gauge and vacuum switch
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Low pressure filter Pi 215-6 / 778458
When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded
This low-pressure filter can also be used as a Pi 2 suction filter, but with a nominal size of 3 l/min.
Matching filter elements: MA-7768358, MA-7768473 and mic-element MA-776811.
Important note:
We supply the Mahle Pi 215-6 low-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Connection type | Thread ISO 228 |
| Connection size | G1 1/4 |
| Operating temperature | -30°C bis +120°C |
| Max. Operating pressure (bar) | 32 |
| Nominal size | 150 |
| Seal material | NBR |
| Filter housing material | ALU |
| Filter head material | ALU |
