Filtration Group low pressure filter PI 2108-058 FL

Price:

1,090.56 €
    ​
English (US)
  2. Shop
  3. Filtration Group Duplex Filter
  4. Filtration Group low pressure filter PI 2108-058 FL
Filtration Group PI 2108-058 Niederdruck Double switching filter
Filtration Group PI 2108-058 Niederdruck Double switching filter
1,029.59 € 1,029.59 €
Filtration Group Low pressure double switching filter Pi 2111-058
Filtration Group Low pressure double switching filter Pi 2111-058
1,077.28 € 1,077.28 €

Filtration Group low pressure filter PI 2108-058 FL

https://www.filcom-technik.de/web/image/product.template/261487/image_1920?unique=f147cc4

1,090.56 € 1090.56 EUR 1,090.56 € VAT Included

1,091.00 € VAT Included

Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers
from 110 € free shipping Details shipping costs
Contact Us
Filtration Group

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

77966880

Category :

Filtration Group Duplex Filter

Weight :

3.30 kg

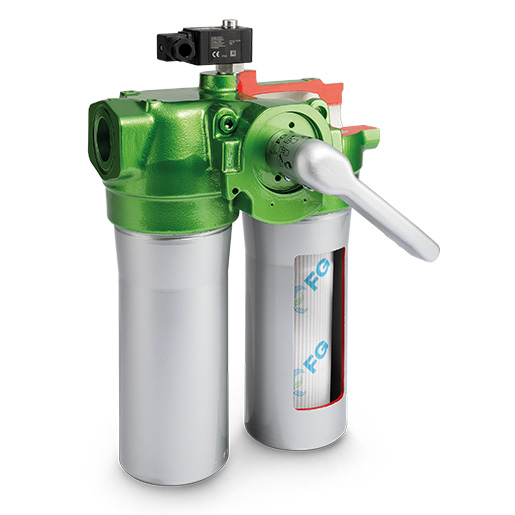

Filtration Group (formerly MAHLE) Low-pressure duplex filter Pi 218-58 / 778126

  • Low space requirement due to compact design
  • Bypass
  • Electrical maintenance indicator
  • Threaded connection
  • Changeover plug on dirty side only
  • Ergonomic changeover lever with pressure compensation and lever lock
  • Minimal pressure loss due to streamlined design of the components
  • Available with high-efficiency PS filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements

    • Important note:
    We supply the Mahle Pi 218-58 low-pressure duplex filter without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Connection type Flange ISO 6162-1
    Connection size DN 25
    Display pressure of contamination indicator (bar) 2,2
    Evaluation of pollution indicators electrical / mechanical
    Operating temperature -10°C bis +120°C
    Bypass valve Opening pressure (bar) 3,5
    Contact type Contamination indicator Closer / Opener
    Max. Operating pressure (bar) 63
    Nominal size 80
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Seal material NBR
    Filter housing material ALU
    Filter head material ALU
