Filtration Group Low-pressure duplex filter Pi 2111-068

Price:

1,006.60 €
    ​
English (US)
  2. Shop
  3. Filtration Group Duplex Filter
  4. Filtration Group Low-pressure duplex filter Pi 2111-068
Filtration Group Low pressure double switching filter Pi 2111-058
Filtration Group Low pressure double switching filter Pi 2111-058
1,077.28 € 1,077.28 €
Filtration Group Low-pressure duplex filter PI 2111-069
Filtration Group Low-pressure duplex filter PI 2111-069
1,077.57 € 1,077.57 €

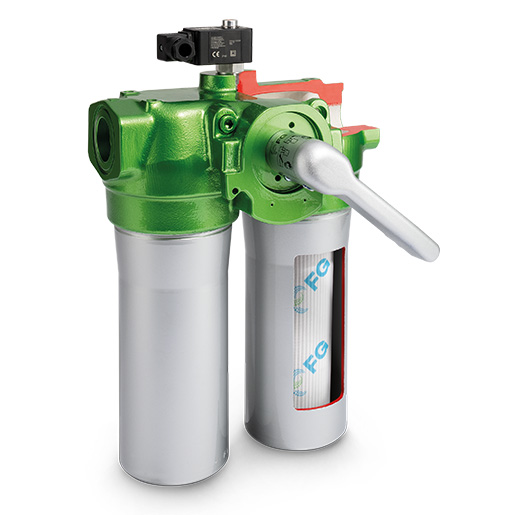

Filtration Group Low-pressure duplex filter Pi 2111-068

https://www.filcom-technik.de/web/image/product.template/55697/image_1920?unique=b9685d6

Low-pressure duplex filter Pi 21
Nominal size 11 l/min,
includes:
- Visual maintenance indicator

1,006.60 € 1006.6 EUR 1,006.60 € VAT Included

1,007.00 € VAT Included

(1,006.60 € / pcs)
Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers
from 110 € free shipping Details shipping costs
Contact Us
Filtration Group

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

78204109

Category :

Filtration Group Duplex Filter

Weight :

4.68 kg

Filtration Group (formerly MAHLE) Low-pressure duplex filter Pi 2111-68 / 782419

  • Low space requirement due to compact design
  • Visual maintenance indicator
  • Threaded connection
  • Changeover plug on dirty side only
  • Ergonomic changeover lever with pressure compensation and lever lock
  • Minimal pressure loss due to streamlined design of the components
  • Available with high-efficiency PS filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements

    • When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded.

    Important note:
    We supply the Mahle Pi 2111-68 low-pressure duplex filter without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Connection type Thread ISO 228
    Connection size G 1
    Display pressure of contamination indicator (bar) 2,2
    Evaluation of pollution indicators mechanical
    Operating temperature -10°C bis +120°C
    Max. Operating pressure (bar) 63
    Nominal size 110
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Seal material NBR
    Filter housing material ALU
    Filter head material ALU
