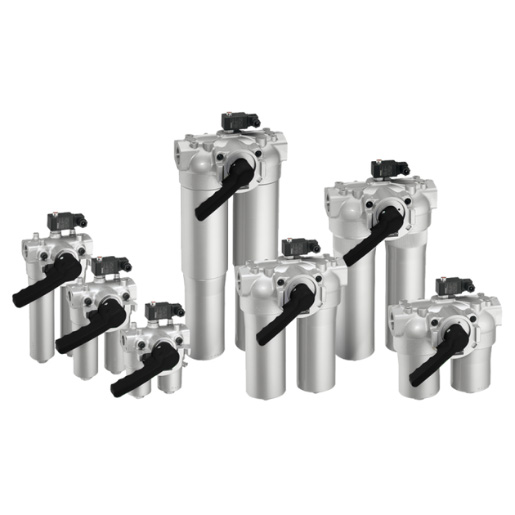

Filtration Group Low pressure double switching filter Pi 21010-058

Low-pressure duplex filter Pi 21 DIN 2455
Nominal size 1 l/min,
includes:
- Bypass
- Electrical maintenance indicator

1,077.28 € 1077.28 EUR 1,077.28 € VAT Included

1,104.00 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

78204133

Category :

Filtration Group Duplex Filter

Weight :

3.95 kg

Filtration Group (formerly MAHLE) Low-pressure duplex filter Pi 21010-058 / 78204133

Low space requirement due to compact design

Bypass

Electrical maintenance indicator

Threaded connection

Changeover plug on dirty side only

Ergonomic changeover lever with pressure compensation and lever lock

Minimal pressure loss due to streamlined design of the components

Available with high-efficiency PS filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

Important note:
We supply the Mahle Pi 211-58 low-pressure duplex filter without the filter element.
For suitable filter elements and accessories, see "Accessories".

Connection type	Thread ISO 228
Connection size	G 1
Display pressure of contamination indicator (bar)	2,2
Evaluation of pollution indicators	electrical / mechanical
Operating temperature	-10°C bis +120°C
Bypass valve Opening pressure (bar)	3,5
Contact type Contamination indicator	Closer / Opener
Max. Operating pressure (bar)	63
Nominal size	100
Type Contamination indicator	VA Differential pressure
Contamination indicator	ja
Seal material	NBR
Filter housing material	ALU
Filter head material	ALU

FG-Datenblatt_Pi2100_NG400_de

Download
