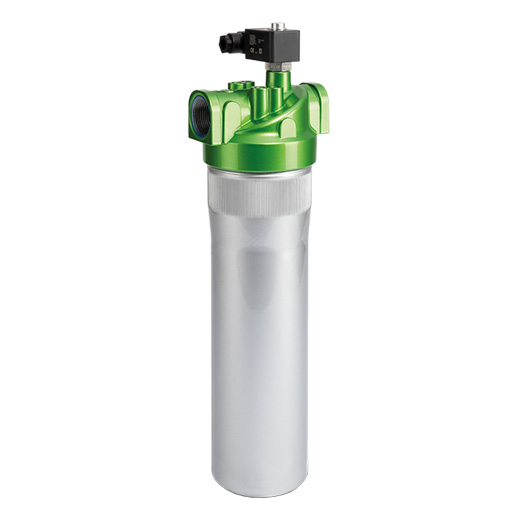

Filtration Group Low pressure filter PI 2011-058
Low-pressure filter Pi 2,
rated size 11 l/min,
includes:
- Bypass
- Electrical maintenance indicator
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Low pressure filter Pi 211-58 / 7825148
Intended for installation in pipes
Modular system for optimum filter selection
Low space requirement due to compact design
Minimal pressure loss due to streamlined design of the components
Version with threaded connections
Bypass
Electrical maintenance indicator
Available with high-efficiency PS filter elements
Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
High differential pressure stability and dirt holding capacity of the elements
Important note:
We supply the Mahle Pi 211-58 low-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Connection type | Thread ISO 228 |
| Connection size | G 3/4 |
| Display pressure of contamination indicator (bar) | 2,2 |
| Evaluation of pollution indicators | electrical / mechanical |
| Operating temperature | -30°C bis +120°C |
| Bypass valve Opening pressure (bar) | 3,5 |
| Contact type Contamination indicator | Closer / Opener |
| Max. Operating pressure (bar) | 63 |
| Nominal size | 110 |
| Type Contamination indicator | VA Differential pressure |
| Contamination indicator | ja |
| Seal material | NBR |
| Filter housing material | ALU |
| Filter head material | ALU |
