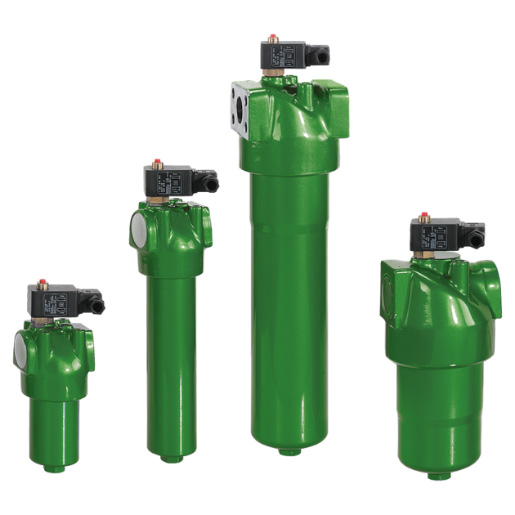

Filtration Group High pressure filter Pi 40004-011

High-pressure filter Pi 4 DIN 2455
Nominal size 4 l/min,
includes:
- Bypass
- Hole for maintenance indicator

330.80 € 330.8 EUR 330.80 € VAT Included

339.00 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Filtration Group

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

78207219

Category :

Filtration Group High Pressure Filter

Weight :

4.15 kg

Filtration Group (formerly MAHLE) High-pressure filter Pi 40004-011 / 78207219

Low space requirement due to compact design

Modular system for optimum filter selection

Minimal pressure loss due to streamlined design of the components

Bypass

Available with high-efficiency PS filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

Important note:
We supply the Mahle Pi 44-11 high-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".

Contact type Contamination indicator	screwed-in blind plug for VA
Filter housing material	Steel
Operating temperature	-10°C bis +120°C
Connection type	Thread ISO 228
Nominal size	40
Filter head material	GGG
Connection size	G1/2
Seal material	NBR
Max. Operating pressure (bar)	400

FG-Datenblatt_Pi4000_NG400_de
