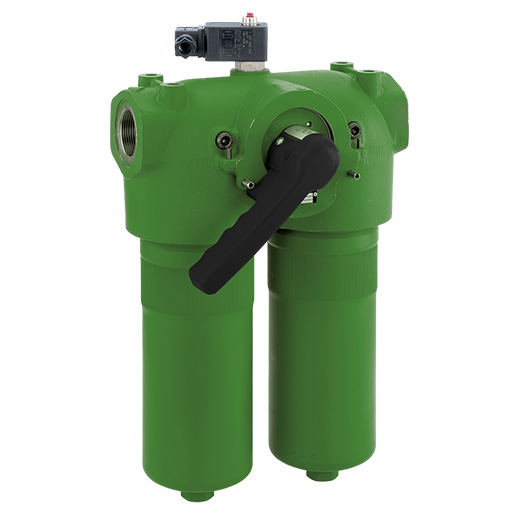

Filtration Group Medium-Double switching filter Pi 37004-015
Medium-pressure duplex filter Pi 37 DIN 2455
rated size 4 l/min,
threaded connection
including:
- Electrical maintenance indicator
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Medium-pressure duplex filter Pi 374-15 / 7828324
Low space requirement due to compact design
Modular system for optimum filter selection
Minimal pressure loss due to streamlined design of the components
Threaded connection
Electrical maintenance indicator
Changeover plug on dirty side only
Ergonomic changeover lever with lever lock and pressure compensation
One-handed operation
Available with high-efficiency PS filter elements
Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
High dirt holding capacity and differential pressure stability of the elements
When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded.
Important note:
We supply the Mahle medium-pressure duplex filter Pi 374-15 without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Connection type | Thread ISO 228 |
| Connection size | G 1 |
| Display pressure of contamination indicator (bar) | 5 |
| Evaluation of pollution indicators | electric |
| Operating temperature | -10°C bis +120°C |
| Bypass valve Opening pressure (bar) | 7 |
| Contact type Contamination indicator | Closer / Opener |
| Max. Operating pressure (bar) | 315 |
| Nominal size | 40 |
| Type Contamination indicator | VA Differential pressure |
| Contamination indicator | ja |
| Seal material | NBR |
| Filter housing material | Steel |
| Filter head material | GGG |
