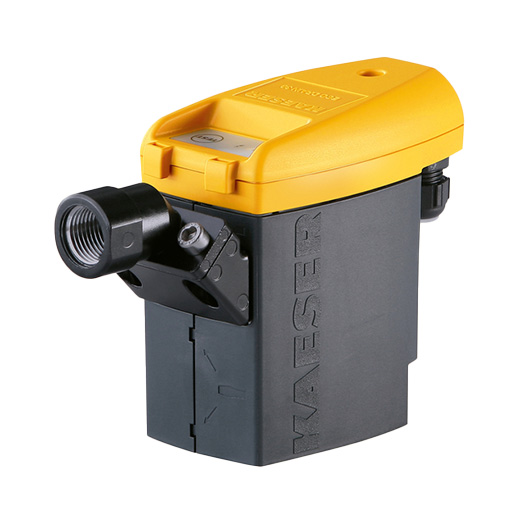

KAESER Steam trap model ECO-DRAIN 31 Vario 95-240VAC
Max. Volume flow for climate zone 2 for installation after compressor: 7 m³/min | Max. Volume flow for climate zone 2 for installation on the refrigeration dryer: 35 m³/min
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Thanks to a condensate volume-dependent control concept and a dirt-resistant valve mechanism, the ECO-DRAIN electronic condensate drains from KAESER are particularly economical and reliable.
Compressed air losses excluded
Condensate drains remove the condensate separated in cyclones, compressed air tanks, refrigeration dryers and filters from the compressed air network. They are therefore indispensable for efficient compressed air treatment and a trouble-free compressed air supply.
Electronic ECO-DRAIN condensate drains from KAESER are particularly economical and reliable thanks to a condensate volume-dependent control concept and a dirt-resistant valve mechanism.
Features:
- Suitable for aggressive condensate
- LED display operation
- Function test button
- Industry standard
- Capacitive level sensor
| Condensate temperature min. (°C) | +1 |
| Max. condensate temperature (°C) | +60 |
| Electrical supply | 95-240 VAC / 50-60 Hz |
| Max. input power (W) | 8 |
| Min. overpressure (bar) | 1 |
| Max. Overpressure (bar) | 16 |
| Protection class | IP 67 |
| Condensate inlet connection | G ½ |
| Condensate drain connection | G ¼ |
| Weight (kg) | 0,9 |
| Width (mm) | 179 |
| Depth (mm) | 74 |
| Height (mm) | 130 |
| Max. Volume flow for climate zone 2 for | 7 |
| Max. Volume flow for climate zone 2 for | 35 |
| LED display fault | Yes |
| Floating contact Fault | Yes |
