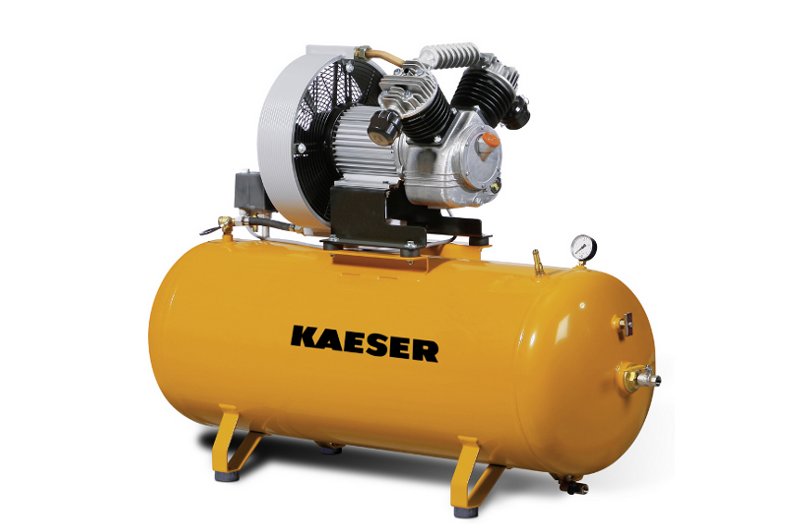

KAESER Reciprocating compressor EUROCOMP model EPC 1000-2-500

Volume flow at 8 bar: 836 l/min | Maximum overpressure: 15 bar | Pressure tank, horizontal: 500 liters | Electrical connection: 400 V / 3 Ph / 50 Hz

9,157.88 € 9157.880000000001 EUR 9,157.88 € VAT Included

9,385.00 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

KAESER Kompressoren SE

KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919

Product no. :

DEEPC1000/2/500

Category :

Oil-Lubricated Workshop Compressors

Weight :

285.00 kg

Delivery area :

Germany

Compressor equipment

- air-cooled compressor block with ring oil lubrication (up to 2.4 kW splash oil lubrication)

- Intake air filter with silencer

- Aluminum cylinder heads and additional cooling pipes for optimum heat dissipation

- Ring cooler made of multi-chamber aluminum profile simultaneously designed as contact protection (from 3 kW)

- lightweight, low-noise reed valves

- Oil filler neck, breather, oil drain plug, oil level indicator glass

- Compressor and motor directly coupled

- Oil level monitoring with automatic shutdown in the event of low oil*

- Vibration isolation of compressor, motor and pressure vessel with vibration metal elements and elastic pressure hose

- Oscillating metal elements for the pressure vessel

Motor- four-pole, 1500 1/min, three-phase current 400 V/50 Hz

- Protection class IP 54, design B 15

- integrated axial fan for cooling the compressor and motor

*Optional for an additional charge. We are happy to answer any questions you may have.

Volume flow at 8 bar (l/min)	836
Volume flow at 12 bar (l/min)	820
Max. Overpressure (bar)	15
Volume of compressed air tank (litres)	500
Motor speed (1/min)	1500
Rated power drive motor (kW)	10
Electrical supply	400 V / 3 Ph / 50 Hz
Number of cylinders	2
Compressed air connection	G 1
Emission sound pressure level (dB(A))	80
Width (mm)	1970
Height (mm)	1340
Depth (mm)	810
Weight (kg)	285
Design	stationary
Sound insulation bonnet design	No

KAESER Betriebsanleitung EPC (2-stufig)

Download

KAESER Prospekt EPC

Download

Variants / Alternatives

Product		Price

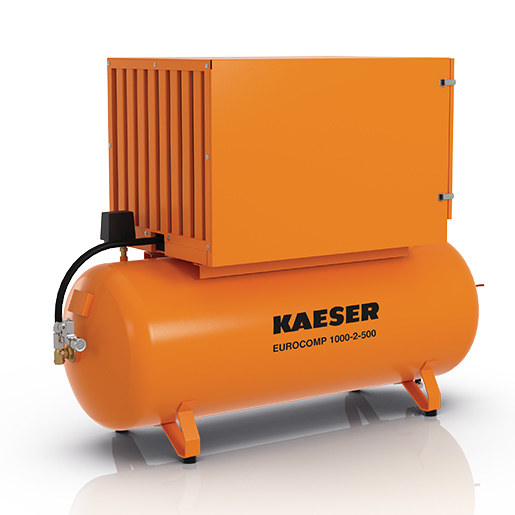

	[DEEPC10002500SDH] KAESER Reciprocating compressor EUROCOMP Model EPC 1000-2-500 with sound enclosure Volume flow at 8 bar: 836 l/min \| Maximum overpressure: 15 bar \| Pressure tank, horizontal: 500 liters \| Electrical connection: 400 V / 3 Ph / 50 Hz	11,221.70 €	Add to cart

Maintenance, wear and spare parts

Product		Price
	[9.0894.1] KAESER Compressor oil VDL 150 VDL 150 piston compressor oil suitable for EUROCOMP piston compressors and piston compressors over 15 kW	36.77 €	Add to cart
