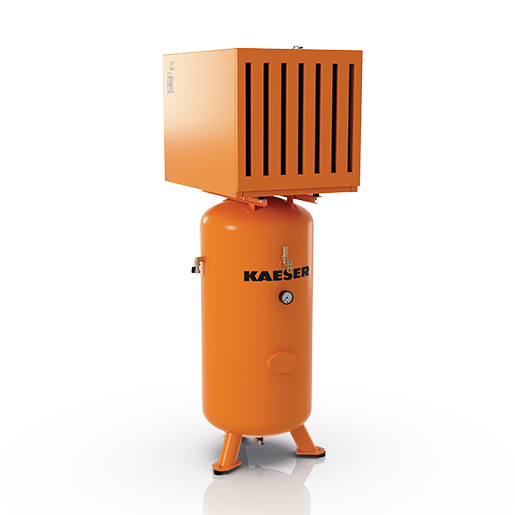

KAESER Reciprocating compressor EUROCOMP model EPC 440-250 (vertical) with sound enclosure
Volume flow at 6 bar: 280 l/min | Maximum overpressure: 10 bar | Pressure tank, vertical: 250 liters | Electrical connection: 400 V / 3 Ph / 50 Hz
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Product no. :
DEEPC440250STSDHCategory :
KAESER EPC EUROCOMPWeight :
160.00 kgDelivery area :
GermanyStationary workshop compressor - 280 l/min at 6 bar, 10 bar, 250 l vertical tank, sound-insulating hood
The KAESER EPC 440-250 is a stationary single-stage piston compressor from the EUROCOMP series, in vertical design with 250-liter compressed air tank. This compressed air compressor with its 2-cylinder compressor block delivers 280 l/min effective volume flow at 6 bar and 2.4 kW nominal power at a maximum overpressure of 10 bar. The integrated silencing hood reduces the sound pressure level to just 67 dB(A) - ideal for noise-sensitive working environments.
Application areas
The EPC 440-250 in upright design proves its worth as a stationary workshop compressor in vehicle workshops, locksmiths, joineries and production facilities. Whether changing tires, grinding, drilling or painting - this air compressor with an operating pressure of 10 bar and 280 l/min at 6 bar is sufficient for all common compressed air tools. The 400 V three-phase connection ensures stable continuous operation in the workshop.
KAESER quality made in Germany
Like all KAESER EUROCOMP piston compressors, the EPC 440-250 is manufactured at the Coburg plant. Corrosion-free stainless steel valves with heat-dissipating stroke limitation, cross-ground cylinders and high-performance fluid as standard ensure a long service life with low maintenance costs - the oil only needs to be changed after approx. 1,000 operating hours.
| Volume flow at 6 bar (l/min) | 280 |
| Volume flow at 8 bar (l/min) | 260 |
| Max. Overpressure (bar) | 10 |
| Volume of compressed air tank (litres) | 250 |
| Motor speed (1/min) | 1500 |
| Rated power drive motor (kW) | 2,4 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Number of cylinders | 2 |
| Compressed air connection | G 1/2 |
| Emission sound pressure level (dB(A)) | 67 |
| Width (mm) | 810 |
| Height (mm) | 1920 |
| Depth (mm) | 640 |
| Weight (kg) | 160 |
| Design | stationary |
| Sound insulation bonnet design | Yes |
