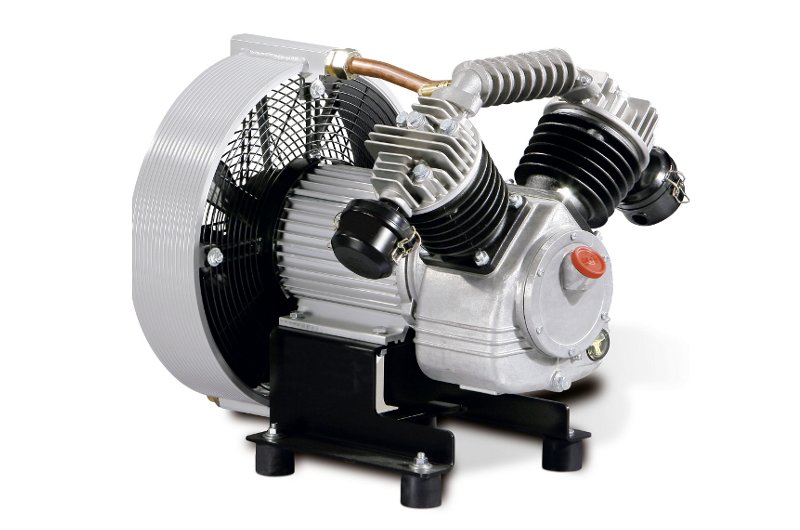

KAESER Reciprocating compressor EUROCOMP model EPC 840-G

Volume flow at 6 bar: 590 l/min | 10 bar | Pressure tank: without | Electrical connection: 400 V / 3 Ph / 50 Hz

3,751.95 € 3751.9500000000003 EUR 3,751.95 € VAT Included

3,845.00 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

KAESER Kompressoren SE

KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919

Product no. :

DEEPC840G

Category :

Oil-Lubricated Workshop Compressors

Weight :

70.00 kg

Delivery area :

Germany

Compressor equipment

- air-cooled compressor block with ring oil lubrication (up to 2.4 kW splash oil lubrication)

- Intake air filter with silencer

- Aluminum cylinder heads and additional cooling pipes for optimum heat dissipation

- Ring cooler made of multi-chamber aluminum profile simultaneously designed as contact protection (from 3 kW)

- lightweight, low-noise reed valves

- Oil filler neck, breather, oil drain plug, oil level indicator glass

- Compressor and motor directly coupled

- Oil level monitoring with automatic shutdown in the event of low oil*

- Vibration isolation of compressor, motor and pressure vessel with vibration metal elements and elastic pressure hose

- Oscillating metal elements for the pressure vessel

Motor- four-pole, 1500 1/min, three-phase current 400 V/50 Hz

- Protection class IP 54, design B 15

- integrated axial fan for cooling the compressor and motor

*Optional for an additional charge. We are happy to answer any questions you may have.

Volume flow at 6 bar (l/min)	590
Volume flow at 8 bar (l/min)	690
Max. Overpressure (bar)	10
Motor speed (1/min)	1500
Rated power drive motor (kW)	4,9
Electrical supply	400 V / 3 Ph / 50 Hz
Number of cylinders	2
Compressed air connection	G 3/4
Emission sound pressure level (dB(A))	78
Width (mm)	630
Height (mm)	550
Depth (mm)	590
Weight (kg)	70
Design	stationary
Sound insulation bonnet design	No

KAESER Montage-/Betriebsanleitung EPC-G

Download

KAESER Prospekt EPC

Download

Variants / Alternatives

Product		Price

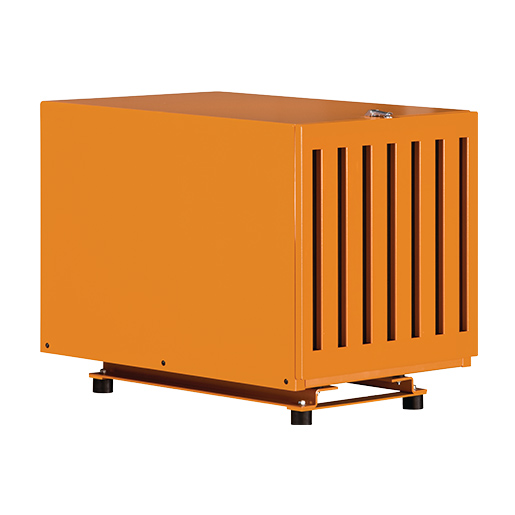

	[DEEPC840GSDH] KAESER Reciprocating compressor EUROCOMP Model EPC 840-G with sound enclosure Volume flow at 6 bar: 590 l/min \| 10 bar \| Pressure tank: without \| Electrical connection: 400 V / 3 Ph / 50 Hz	5,264.44 €	Add to cart

Maintenance, wear and spare parts

Product		Price
	[9.0894.1] KAESER Compressor oil VDL 150 VDL 150 piston compressor oil suitable for EUROCOMP piston compressors and piston compressors over 15 kW	36.77 €	Add to cart
