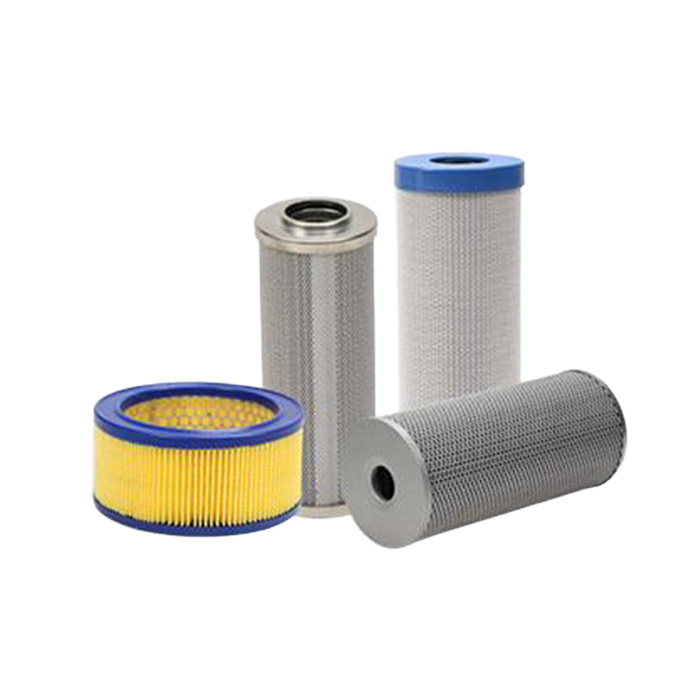

FILTREC hydraulic filter element DLD100B80V2
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC DLD100B80V2 pressure filter - stainless steel wire mesh
The FILTREC filter element for pressure filter DLD100B80V2 with stainless steel wire mesh filter medium, FKM seal and max. 16 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| max. differential pressure (bar) | 16 bar |
| Outer diameter (mm) | 60,00 |
| Height (mm) | 204 |
| Height 1 (mm) | 198 |
| Height 2 (mm) | 6 |
| Inner diameter (mm) | 32.5 |
| Filter material | Wire mesh |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -25°C to +100°C |
| D1 | 60 |
| D2 (mm) | 32.5 |
| H1 | 204 |
| H2 | 198 |
| H3 | 6 |
