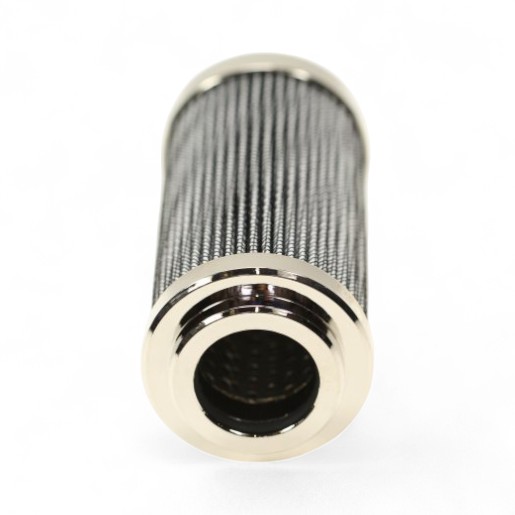

FILTREC pressure filter DVD20005F10V - glass fiber, 10µm
The FILTREC filter element for pressure filter DVD20005F10V with glass fiber filter medium, 10µm filter fineness, VITON seal and max. 210 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| max. differential pressure (bar) | 210 |
| Outer diameter (mm) | 45 |
| Height (mm) | 98 |
| Inner diameter (mm) | 24.2 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß10=200 / ß12=1000 |
| Seal material | VITON |
| Zul. Dauereinsatztemperatur | -25°C to 120°C |
| A | 45 mm |
| B | 24.2 |
| C | 98 mm |
