FILTREC filter element for pressure filter DVD20008B100B
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable

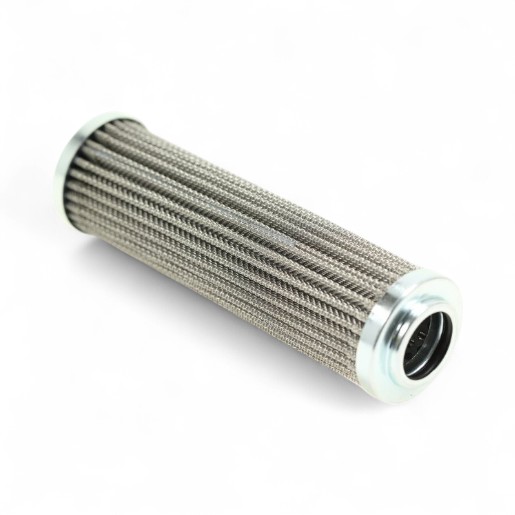

FILTREC pressure filter DVD20008B100B - stainless steel wire mesh, 100µm
The FILTREC filter element for pressure filter DVD20008B100B with stainless steel wire mesh filter medium, 100 µm filter fineness, NBR seal and max. 30 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| max. differential pressure (bar) | 30 |
| Outer diameter (mm) | 45 |
| Height (mm) | 157 |
| Inner diameter (mm) | 24.2 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 100 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 45 mm |
| B | 24.2 |
| C | 157 mm |
