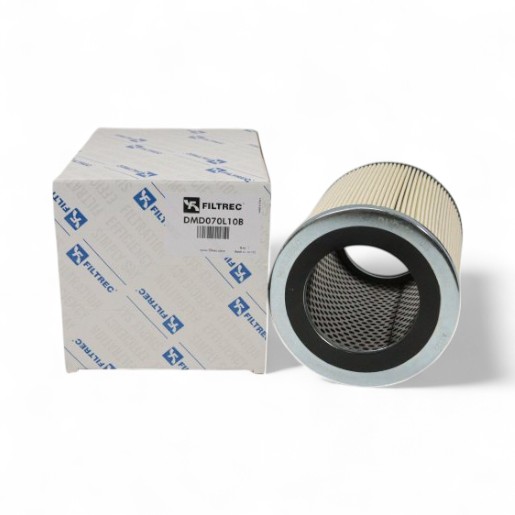

FILTREC replacement filter element for SF-Filter HY15234
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
Precisely fitting replacement filter element for SF filter HY 15234 - quality from Italy
This FILTREC replacement filter element with cellulose filter medium, 10 µm filter fineness, NBR seal and max. 6 bar differential pressure is the high-quality alternative to the SF filter HY 15234. Manufactured in Italy according to international ISO standards. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| max. differential pressure (bar) | 6 |
| Outer diameter (mm) | 150 |
| Height (mm) | 205 |
| Inner diameter (mm) | 89 |
| Filter material | Cellulose |
| Filter fineness c (micrometer) | ß10=2 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 150 mm |
| B | 89 mm |
| C | 89 mm |
| D | 202 mm |
| E | 15 mm |
| F | 205 |
