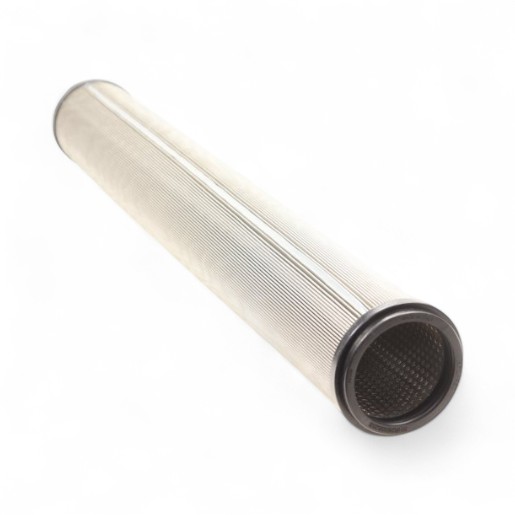

FILTREC replacement filter element for Hydac 00301506
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
Precisely fitting replacement filter element for Hydac 00301506 - quality from Italy
This FILTREC replacement filter element with stainless steel wire mesh filter medium, 25 µm filter fineness, NBR seal and max. 20 bar differential pressure is the high-quality alternative to the Hydac 00301506. Manufactured in Italy according to international ISO standards. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| max. differential pressure (bar) | 20 |
| Outer diameter (mm) | 124,5 |
| Height (mm) | 921 |
| Inner diameter top (mm) | 95,5 |
| Inner diameter bottom (mm) | 96,5 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 25 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -25°C to +100°C |
| D1 | 1245 |
| D2 (mm) | 965 |
| D3 (mm) | 955 |
| H1 | 921 |
| H2 | 8965 |
| H3 | 24 |
