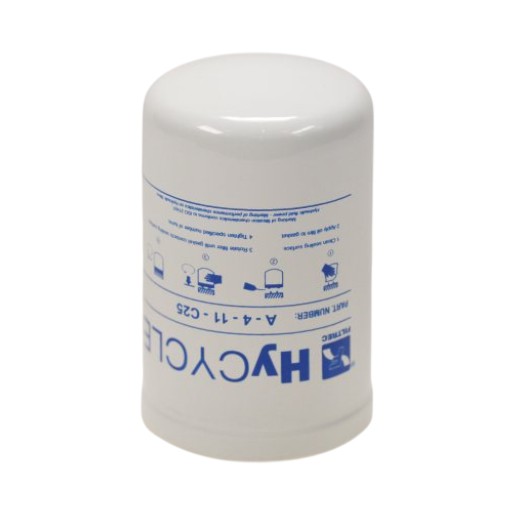

FILTREC replacement filter element for Hydac 90406MA20P
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
Precisely fitting replacement filter element for Hydac 90406MA20P - Quality from Italy
This FILTREC replacement filter element with cellulose filter medium, 50 µm filter fineness, NBR seal and max. 15 bar differential pressure is the high-quality alternative to the Hydac 90406MA20P. Manufactured in Italy according to international ISO standards. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Max. Operating pressure (bar) | 34,5 |
| max. differential pressure (bar) | 15 |
| Outer diameter (mm) | 95 |
| Height (mm) | 154 |
| Connection thread | 1"3/8-12 UNF 2B |
| Filter material | Cellulose |
| Filter fineness c (micrometer) | ß50=1000 |
| Seal material | NBR |
| A | 95 mm |
| B | 1"3/8-12 UNF 2B |
| C | 154 |
| Field of application | Hydraulics |
| Max. Operating pressure (bar) | 34,5 |
| max. differential pressure (bar) | 15 |
| Outer diameter (mm) | 95 |
| Height (mm) | 154 |
| Connection thread | 1"3/8-12 UNF 2B |
| Filter material | Cellulose |
| Filter fineness c (micrometer) | ß50=1000 |
| Seal material | NBR |
| A | 95 mm |
| B | 1"3/8-12 UNF 2B |
| C | 154 |
