FILTREC suction filter (screw-on element) FS183B10T125
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable

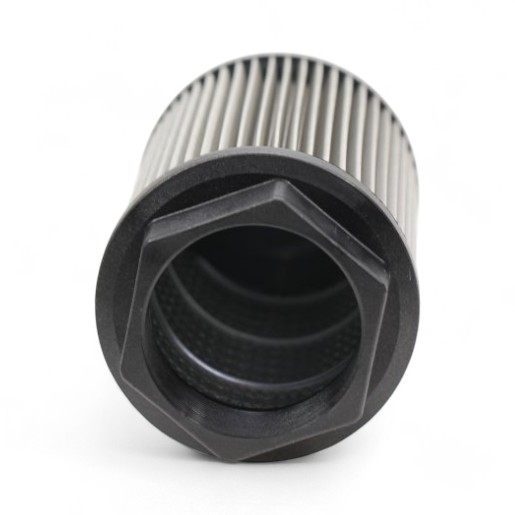

FILTREC suction filter FS183B10T125 - stainless steel wire mesh, 125µm
The FILTREC filter element for suction filter FS183B10T125 with stainless steel wire mesh filter medium, 125 µm filter fineness and max. 1 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| max. differential pressure (bar) | 1 |
| Outer diameter (mm) | 131 |
| Height (mm) | 235 |
| Connection thread | 3" BSP |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 125 |
| Zul. Dauereinsatztemperatur | -30°C to +100°C |

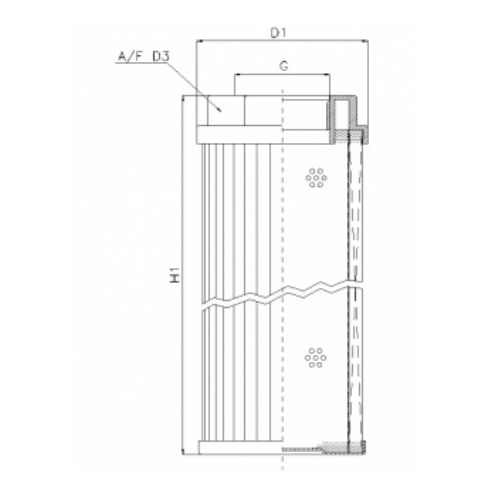

| D1 | 131 |
| D3 (mm) | 98 |
| G | 3" BSP |
| H1 | 235 |
